Product Description

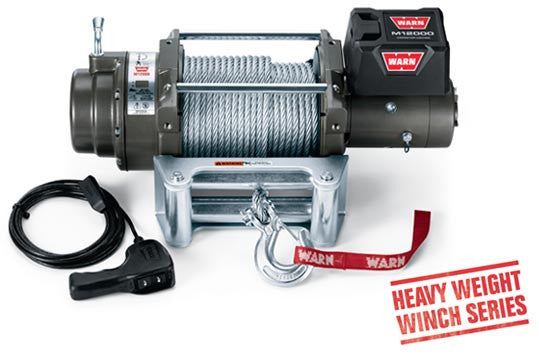

Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.
- 12,000 lb. (5,440 kg) pulling capacity (single line)
- Large frame winch design is designed to handle heavier winch loads
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Brake provides superior control while winching
- Remote-mount control box allows for various mounting options
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12' (3.7m) lead
- Chip-resistant powder-coated finish
- 125' of 3/8" (38m of 9.5mm) diameter wire rope
| M12000 SPECS/PART NUMBERS |
| Part Number: 17801 (12V) |
| Part Number: 87801 (12V, CE, International sales only) |
| Part number: 265072 (24V) Contact WARN Customer Service for Availability |
| Rated line pull: 12000 lbs., (5440 kgs.) single-line |
| Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12 in (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 261:1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic mechanical cone |
| Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm) |
| Weight: 136 lbs. (62kgs.) |
| Wire rope: 125 ft , 3/8 in diameter (38m, 9.5mm diam.) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72 in (1.83m) |
| Finish: Argent Gray Powder Coat |
| Winch Dimensions: 24.37 in L. x 8.45 in D. x 11 in H. (619mm L. x 214.63mm D. x 279mm H.) |
| Mounting Bolt Pattern: 10.0 in x 4.5 in (254mm x 114.3mm) |
Drop shipping required for this item. We'll contact you for a quote.
