Product Description

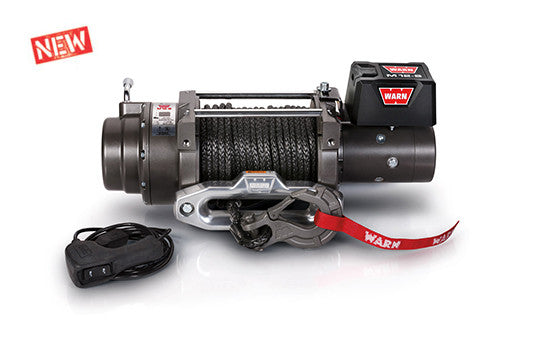

The WARN M12-S combines a proven WARN large-frame winch with 100' of 3/8" state-of-the-art Spydura® synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. The winch's 12,000 lb. pulling capacity makes it great for large pickups and heavier SUVs.
- 12,000 lb. capacity
- Includes 100' of 3/8" Spydura synthetic rope
- Includes 18,000 lb capacity EPIC hook
- Large-frame winch architecture mounts feet forward
- Contactor control for the ultimate in reliable electronics
- Powerful, efficient series-wound motor
- Durable, smooth three-stage planetary gear train
- Best-in-class cone brake
- Limited lifetime warranty
| M12000 SPECS/PART NUMBERS |
| Part Number: 97720 (12V) |
| Part Number: 87801 (12V, CE, International sales only) |
| Part number: 265072 (24V) Contact WARN Customer Service for Availability |
| Rated line pull: 12000 lbs., (5440 kgs.) single-line |
| Motor: Series Wound, 12V 4.6 hp |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12 in (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 261:1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic mechanical cone |
| Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm) |
| Weight: Shipping: 100 lbs. (45 kgs); Net product: 89 lbs. (40kgs) |
| Wire rope: Spydura® Synthetic: 100' x 3/8" (9.5mm x 30m) |
| Fairlead: Hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72 in (1.83m) |
| Finish: Argent Gray Powder Coat |
| Winch Dimensions: 24.3 in L. x 8.4 in D. x 11 in H. (619mm L. x 214.6mm D. x 279mm H.) |
| Mounting Bolt Pattern: 10.0 in x 4.5 in (254mm x 114.3mm) |
Drop shipping required for this item. We'll contact you for a quote.
