VIAIR- Ultra Duty OBA

Vendor: VIAIR
Regular price: $ 588.95 USD
Sale price: $ 588.95 USD
Regular price
Unit price: per

Shipping calculated at checkout.

Product Description

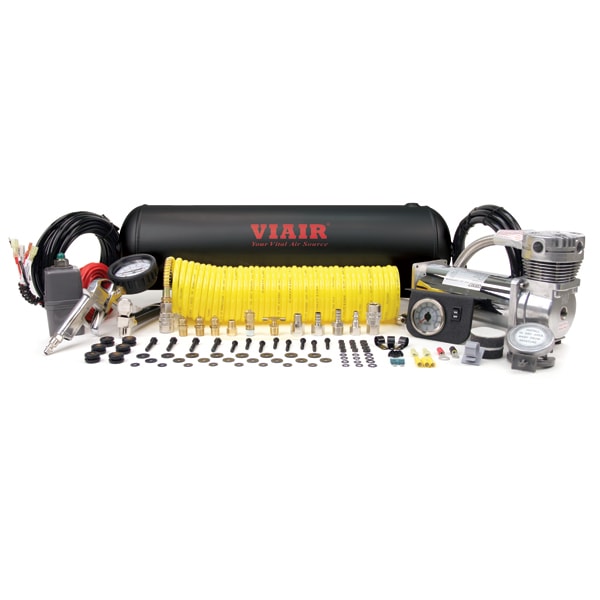

VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor,2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

FEATURES
– 2.5 Gallon 200 PSI VIAIR Air Tank
– 480C Chrome VIAIR Air Compressor w/Thermal Overload Protector
– Tire Inflation Gun with 200 PSI Gauge
– Dash Panel Gauge with ON/OFF Switch
– 30ft. Coil Hose with Quick Connects
– Pressure Switch (165 PSI on, 200 PSI off)
– Reducer: 1/8” (F) to 1/4” (M)
– Reducer: 3/8” (F) to 1/4” (M)
– 1/4” Quick Connect Stud (F)
– 1/4” Quick Connect Coupler (F)
– 1/4” 250 PSI Safety Valve
– 1/4” Drain Cock
– (3) 1/4” Compression Fittings
– 20ft. 12-Gauge Wire with Inline Fuse Holder
– 4” Strip of Continuous Grommet Material
– Accessory Airline
– Electrical Connections

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 200 PSI
– Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
–
–
–
–
–
–
–
–
–
–
–
–

All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.

PERFORMANCE DATA

PSI	CFM	A	BAR	LPM	A
0	1.86	10	0	52.7	10
10	1.75	12	1.0	47.5	13
20	1.59	14	2.0	43.2	15
30	1.52	15	3.0	40.7	16
40	1.45	16	4.0	38.1	18
50	1.41	17	5.0	35.3	18
60	1.33	18	6.0	32.6	19
70	1.26	18	7.0	30.0	20
80	1.20	19	8.0	27.0	22
90	1.13	19	9.0	25.0	22
100	1.07	20	10.0	22.3	21
110	0.99	21	11.0	20.1	21
120	0.93	23	12.0	18.3	21
130	0.88	22	13.0	16.0	20
140	0.82	22	14.0	14.0	19
150	0.75	21
160	0.71	21
170	0.67	21
180	0.61	21
190	0.55	20
200	0.51	19

* Supply Voltage: 13.8 Volts

FILL RATES

2.5 GALLON TANK	FILL RATE
0 to 200 PSI	5 min. 02 sec. (± 10 sec.)
165 to 200 PSI	1 min. 30 sec. (± 05 sec.)
35″ X 12.5″	FILL RATE
0 to 30 PSI	6 min. 15 sec. (± 15 sec.)
15 to 30 PSI	3 min. 15 sec. (± 10 sec.)
37″ X 12.5″	FILL RATE
0 to 30 PSI	7 min. 00 sec. (± 15 sec.)
15 to 30 PSI	3 min. 40 sec. (± 10 sec.)

Watch our Step by Step instructions on how to install your VIAIR On-Board Air System below

To read our complete installation article. Click Here.

NOTE: The installation instructions in this video are only applicable to single-compressor onboard air systems (Part Numbers: 10003, 10005, 10007, and 20001). For other OBA’s, the wiring is different. If you have installation questions, please contact our customer service team.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
