Product Description

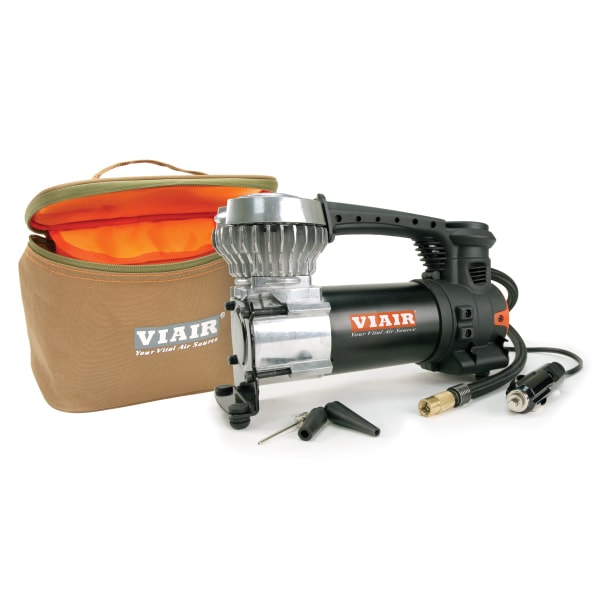

85P is a small powerful portable tire inflator with a built-in LED work light, capable of inflating up to 31-inch tires by simply plugging into your cigarette lighter power port (Max: 15A/180W). Connect the screw-on tire chuck to a tire valve stem before turning the unit on. Tire pressure can be monitored using the gauge incorporated into the top of
the unit.
Please Note: Always check your vehicle’s power port rating for maximum amperage before ordering. The 85P does not work with Presta bicycle valves, unless used with a Presta Valve Adapter.
| FEATURES |
|---|
| – 100 PSI Pressure Gauge |
| – LED Work Light / Power Indicator |
| – Solid Brass Twist-on Tire Chuck |
| – Accessory Power Plug |
| – Deluxe Carry Bag |
| – 3 pc. Inflation Tips Kit* |
| *(Mounted above Rear Compressor Feet) |
| – |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 20 min. @ 30 PSI |
| – Max. Working Pressure: 60 PSI |
| – Max. Amp/Watt Draw: 15A/180W |
| – Ingress Protection Rating: IP53 |
| – Max. Ambient Temp: +158°F |
| – Min. Ambient Temp: -4°F |
| – Dimensions: 9.1″L x 3.1″W x 5.6″H |
| – Net Weight: 4.30 lbs. |
| – Power Cord Length: 10 ft. |
| – Air Hose Length: 3 ft. |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 6ft. Portable Compressor Air Extension Hose (P/N 00016) | |||||
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.26 | 13 | 0 | 35.7 | 13 |
| 10 | 1.22 | 13 | 1.0 | 33.5 | 13 |
| 20 | 1.13 | 13 | 2.0 | 29.3 | 14 |
| 30 | 1.02 | 14 | 3.0 | 24.8 | 15 |
| 40 | 0.92 | 15 | 4.0 | 20.5 | 13 |
| 50 | 0.80 | 14 | |||
| 60 | 0.71 | 13 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 195/70R14 | FILL RATE |
|---|---|
| 20 to 30 PSI | 42 sec. (± 05 sec.) |
| 30 to 40 PSI | 46 sec. (± 05 sec.) |
| 225/60R18 | FILL RATE |
| 20 to 30 PSI | 55 sec. (± 05 sec.) |
| 30 to 40 PSI | 1 min. 05 sec. (± 05 sec.) |
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
