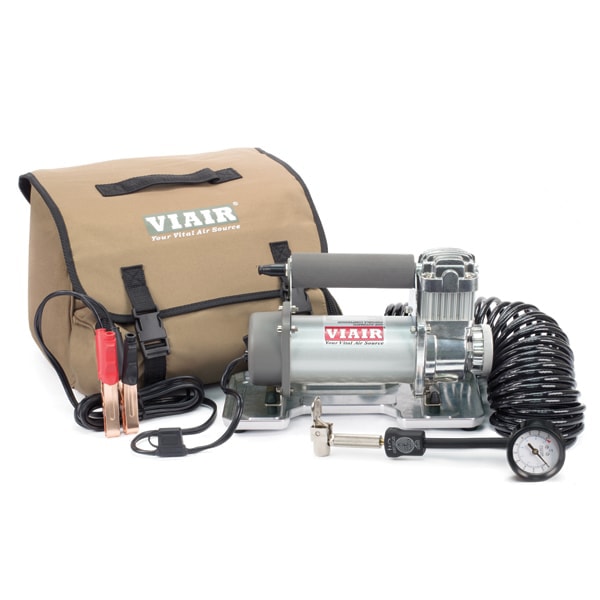

VIAIR- 400P Portable Compressor

VIAIR- 400P Portable Compressor

VIAIR
$ 239.95 USD
$ 239.95 USD
Sold out
Shipping calculated at checkout.

Additional payment options available at checkout.

Product Description

Features our brand new I-Beam Sand Tray for improved stability and lighter weight. The 400P is a larger powerful portable tire inflator kit that can inflate up to a 35-inch tire from 0 to 30 PSI in less than 6 minutes. Used and approved of by off road enthusiasts worldwide, the 400P can save you when you’re miles from home.

Please Note: The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 400P does not work with Presta bicycle valves, unless used with a Presta Valve Adapter.

FEATURES
– Thermal Overload Protector
– 5-in-1 Inflator/Deflator Air Hose
with Inline 100 PSI Gauge
– I-beam Sand Tray (PN 40043)
– Diamond-Plate Sand Tray (PN 40050)
– Deluxe Dual Compartment Carry Bag
– 40-amp Inline Fuse Holder
– Dual Battery Clamps
– 3 pc. Inflation Tips Kit
–
–
–
SPECIFICATIONS
– 12-Volt / 24-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. 12V Amp Draw: 30 Amps
– Max. 24V Amp Draw: 15 Amps
– Ingress Protection Rating: IP54
– Dimensions: 10.87″L x 5.83″W x 7.48″H
– Net Weight: 10.40 lbs.
– Power Cord Length: 8 ft.
– Air Hose Length: 25 ft.
–

PERFORMANCE DATA

12-VOLT COMPRESSOR
PSI CFM A BAR LPM A
0 2.30 17 0 65.1 17
10 2.13 19 1.0 58.4 20
20 1.98 21 2.0 53.0 23
30 1.86 23 3.0 48.5 24
40 1.75 24 4.0 44.2 26
50 1.64 25 5.0 40.2 27
60 1.54 26 6.0 37.0 28
70 1.44 27 7.0 33.3 29
80 1.37 27 8.0 30.1 28
90 1.28 28 9.0 27.0 28
100 1.19 29 10.0 22.1 27
110 1.11 29
120 1.04 28
130 0.95 28
140 0.85 27
150 0.71 27

* Supply Voltage: 13.8 Volts

24-VOLT COMPRESSOR
PSI CFM A BAR LPM A
0 2.54 10 0 72.0 10
10 2.26 11 1.0 62.2 11
20 2.12 12 2.0 55.4 12
30 1.94 13 3.0 50.7 13
40 1.84 13 4.0 46.3 14
50 1.70 14 5.0 43.4 14
60 1.62 14 6.0 40.5 14
70 1.55 14 7.0 35.7 14
80 1.48 14 8.0 32.1 14
90 1.41 15 9.0 27.0 14
100 1.27 14 10.0 22.1 14
110 1.20 14
120 1.09 14
130 0.95 14
140 0.85 14
150 0.71 14

* Supply Voltage: 28.0 Volts

FILL RATES

12-VOLT COMPRESSOR
31″ X 10.5″ FILL RATE
0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
15 to 30 PSI 1 min. 35 sec. (± 05 sec.)
33″ X 12.5″ FILL RATE
0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI 2 min. 45 sec. (± 05 sec.)



24-VOLT COMPRESSOR
31″ X 10.5″ FILL RATE
0 to 30 PSI 2 min. 50 sec. (± 05 sec.)
15 to 30 PSI 1 min. 25 sec. (± 05 sec.)
33″ X 12.5″ FILL RATE
0 to 30 PSI 4 min. 00 sec. (± 10 sec.)
15 to 30 PSI 2 min. 00 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 30 PSI 5 min. 05 sec. (± 15 sec.)
15 to 30 PSI 2 min. 40 sec. (± 05 sec.)

USER MANUAL

DIMENSIONAL DRAWING
