Front Runner Cargo Bed Slide S / M / L

Product Description

Overview: Improve access and organization of your gear with the versatile Cargo Bed Slide. Its T-slots let you easily attach accessories like Tie Down Rings and Wolf Pack Pro brackets. With one hand, you can effortlessly pull the gear on the slide towards you.

3 Sizes to select from: Small, Medium, Large

Features & Benefits:

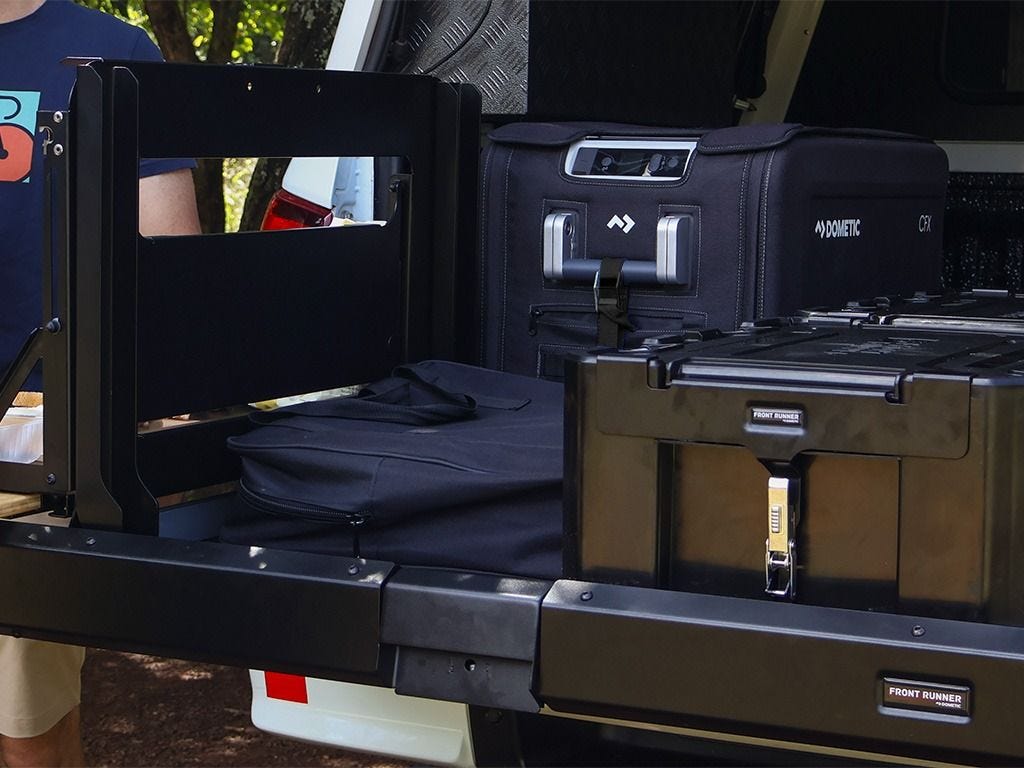

• Improve access to your gear. Secure cargo, fridges and other accessories to the sliding deck, bringing your gear to you.

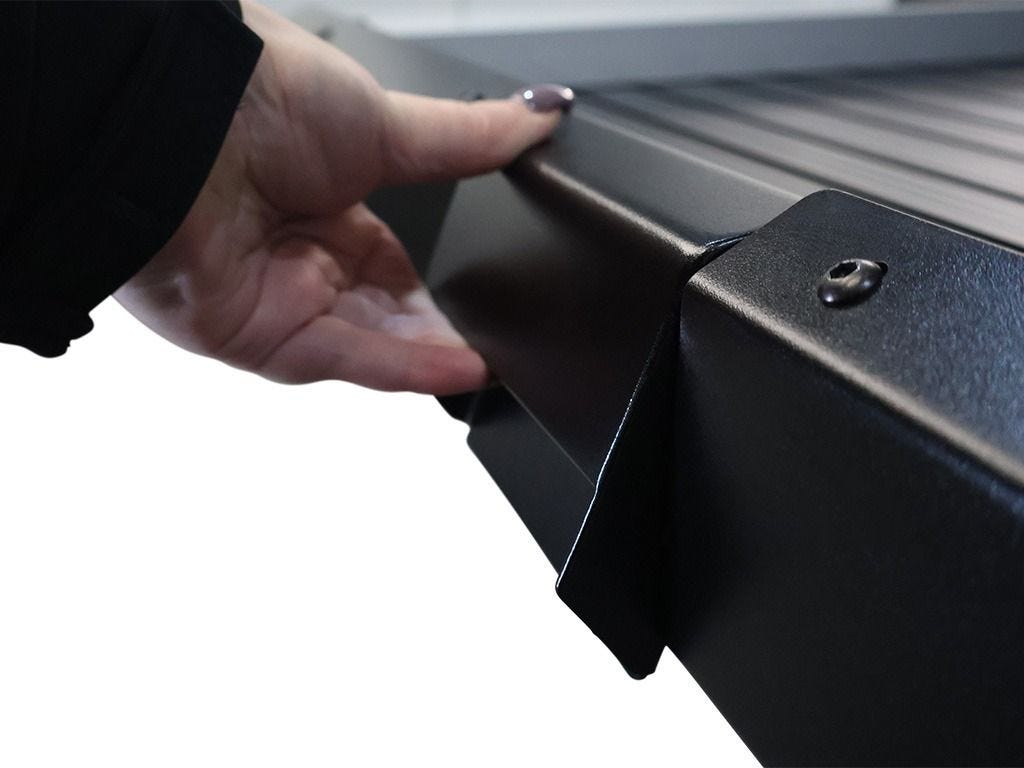

• Ergonomic handle allows for single handed operation.

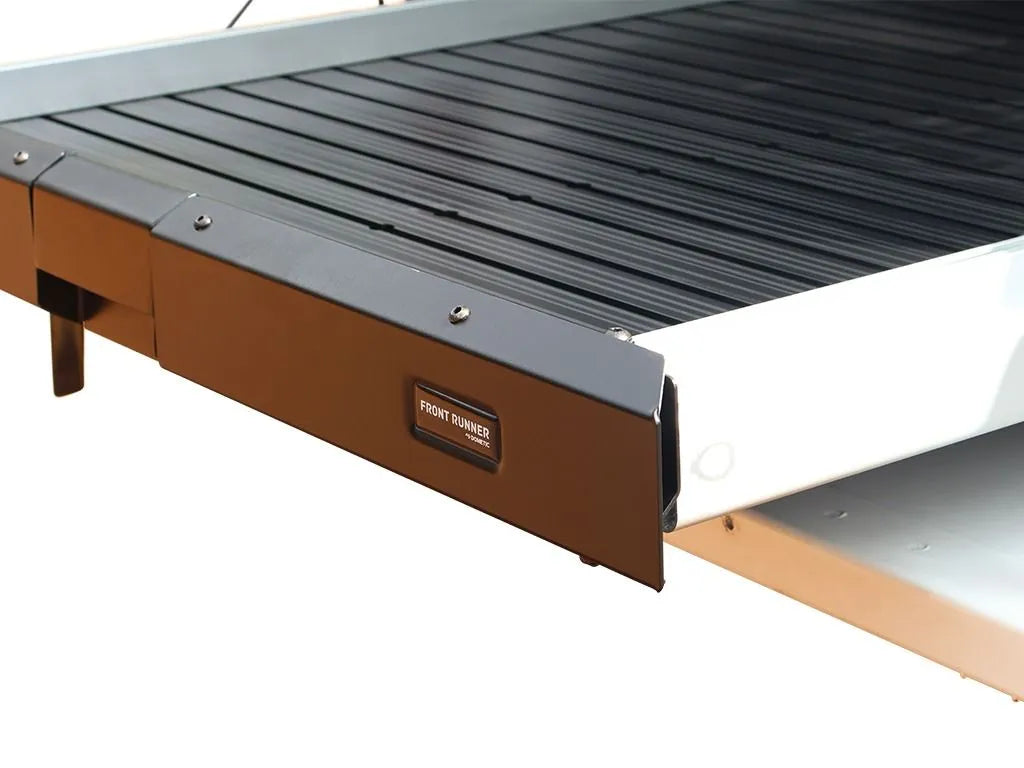

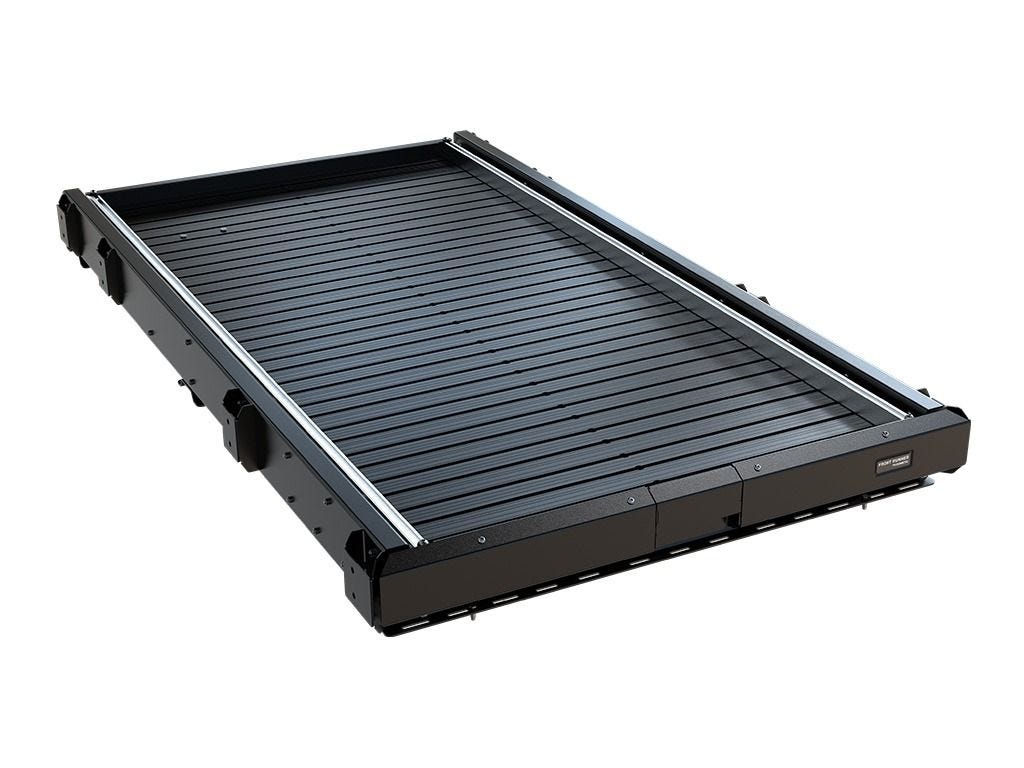

• The sliding tray features a slat deck with the same t-slot pitch as your Front
• Runner Dometic roof rack to allow mounting of accessories such as Black Tie
• Down Rings / Eye Nuts, Wolf Pack Pro Rack Mounting Bracket / MKII or
• Adjustable Rack Cargo Chocks.

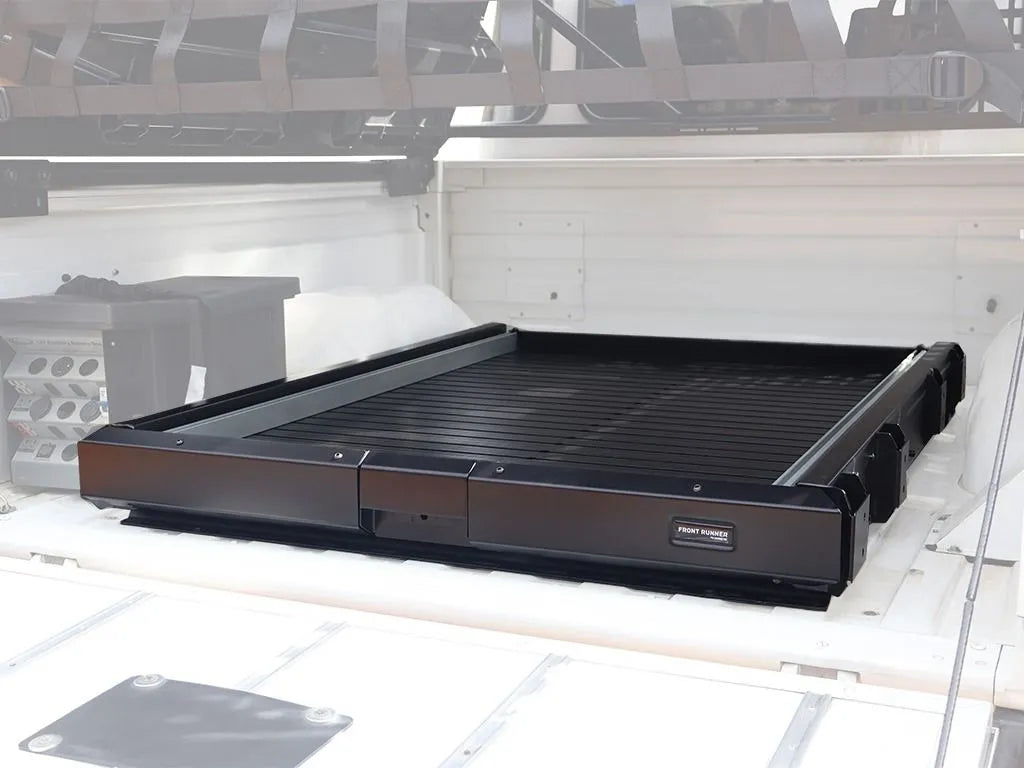

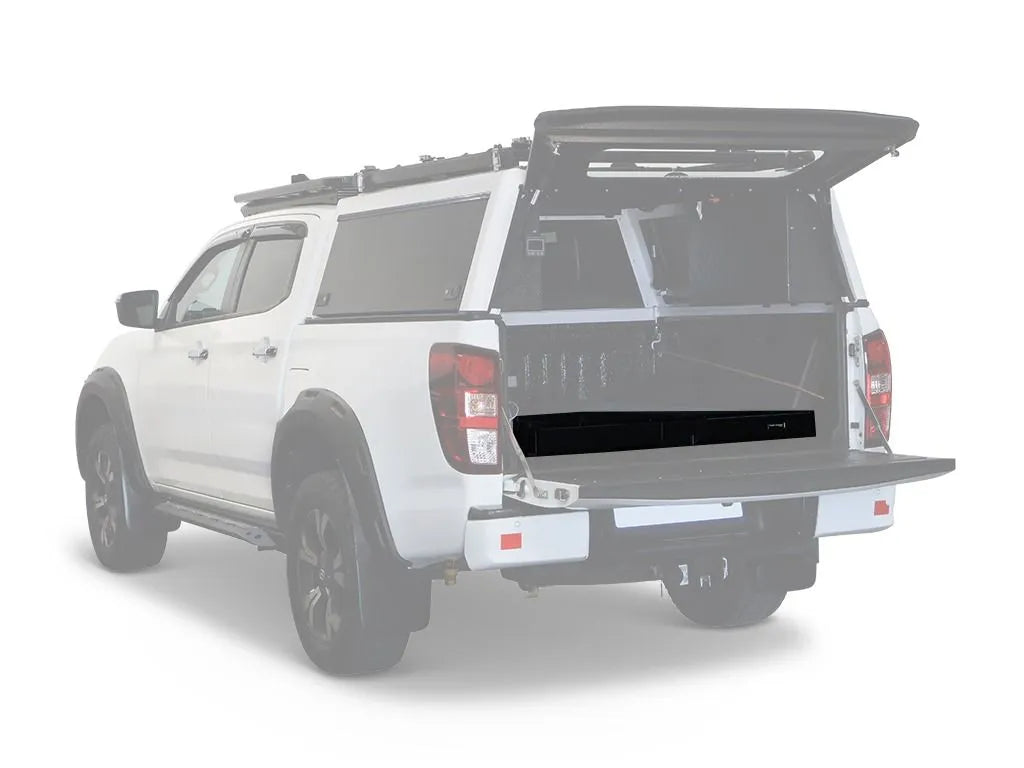

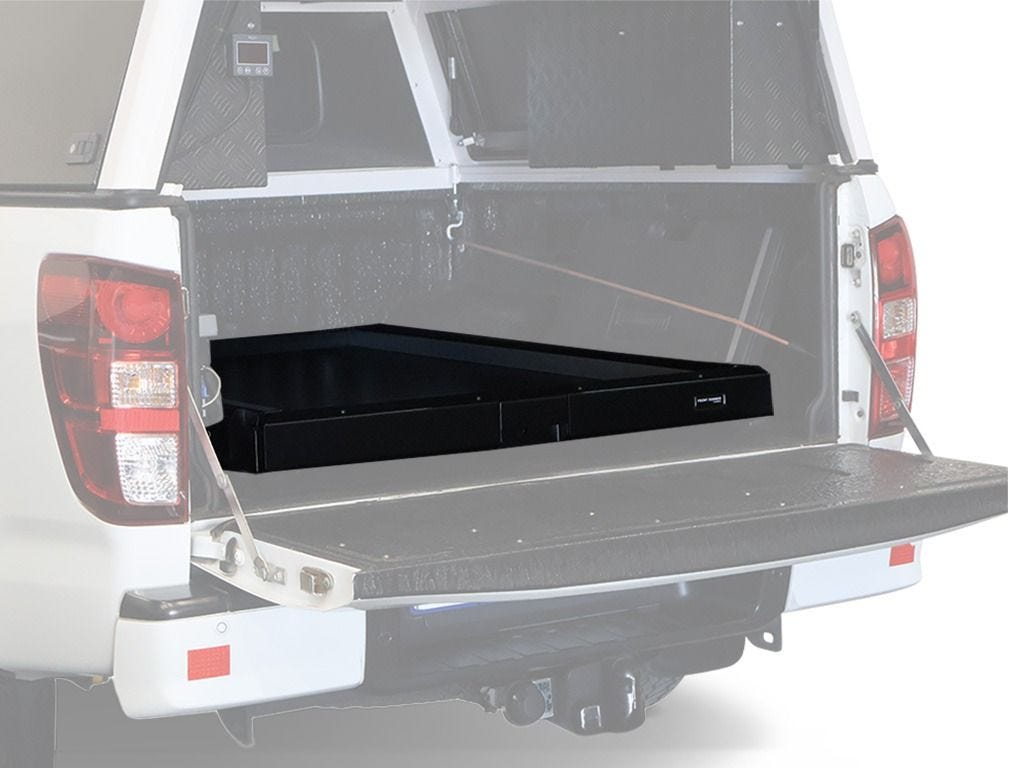

• The Cargo Slide / Large installs into the Load Bed of your vehicle. Bolt through or riv-nut installation options are available.

• Drilling is required to secure the base of the Cargo Slide Bed / Large to your Load Bed.

• Creates a loading area of SEE BELOW FOR SPECS

• The cargo load area sits SEE BELOW FOR SPECS from load bed maximising cargo space utilization.

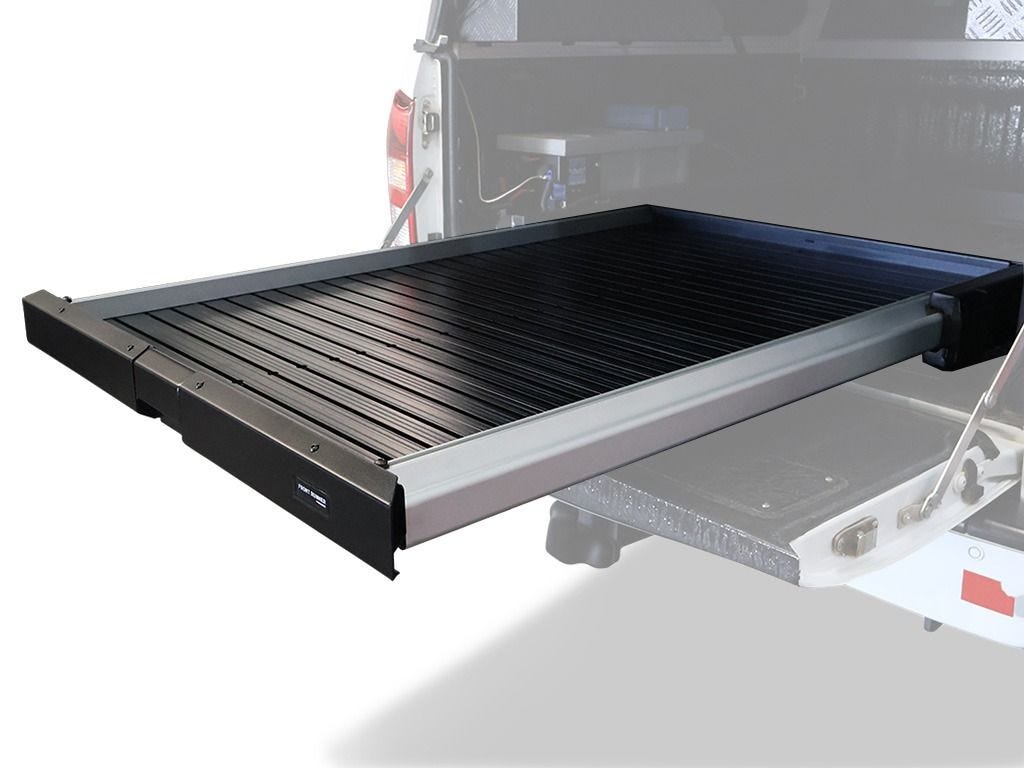

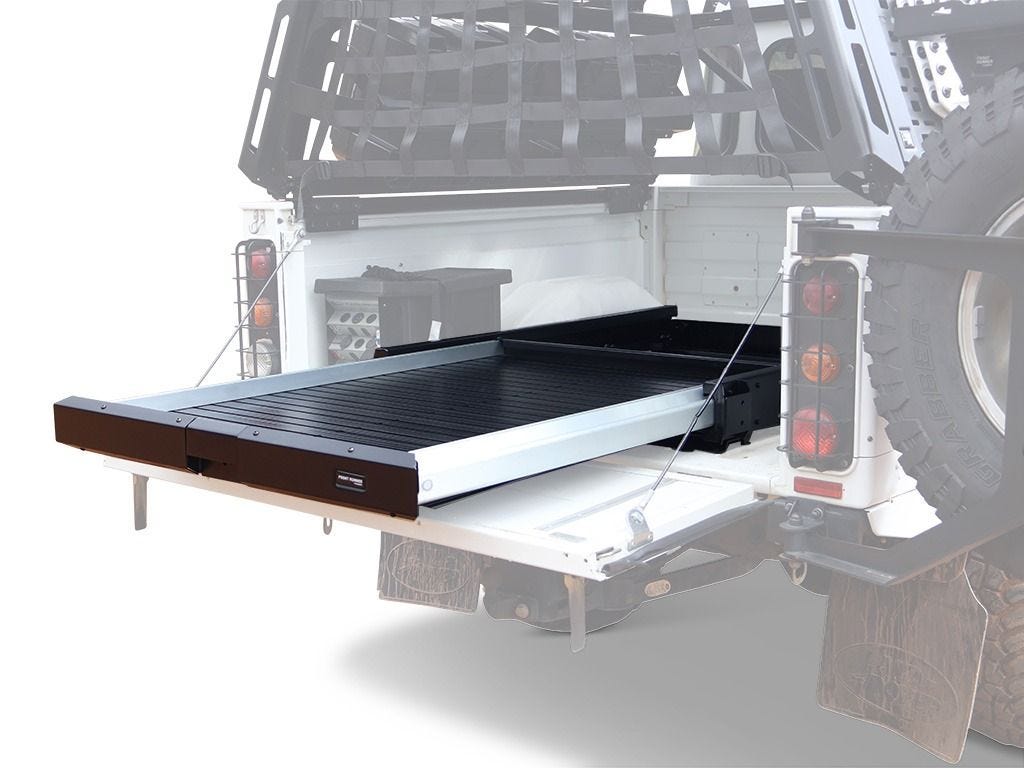

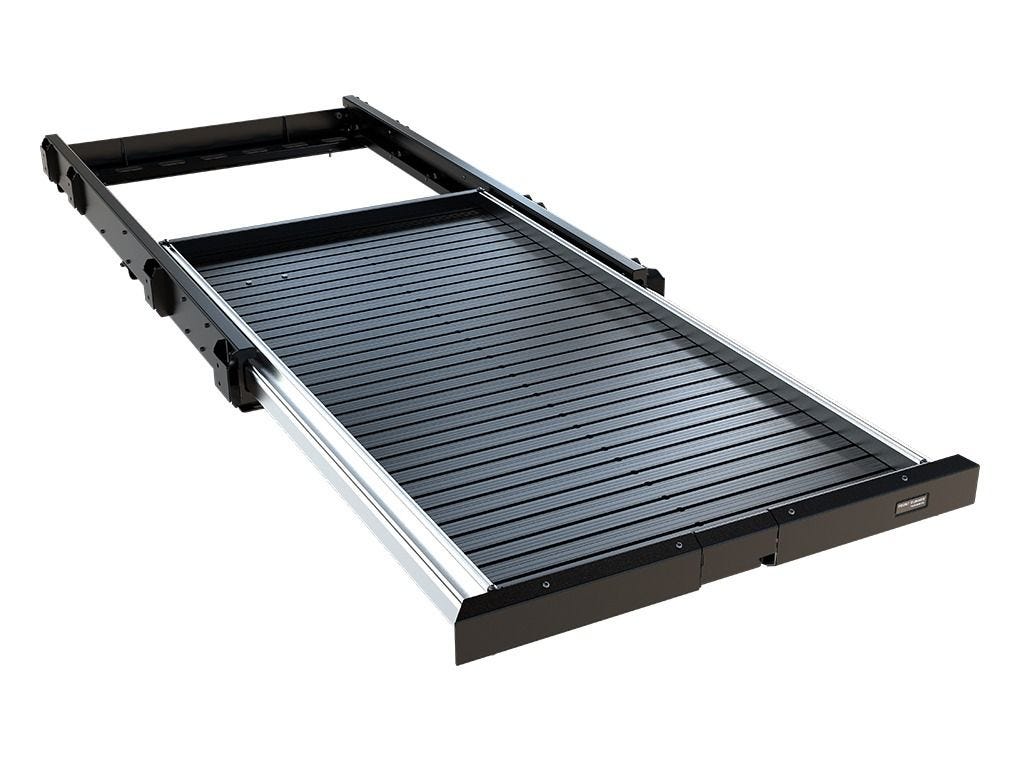

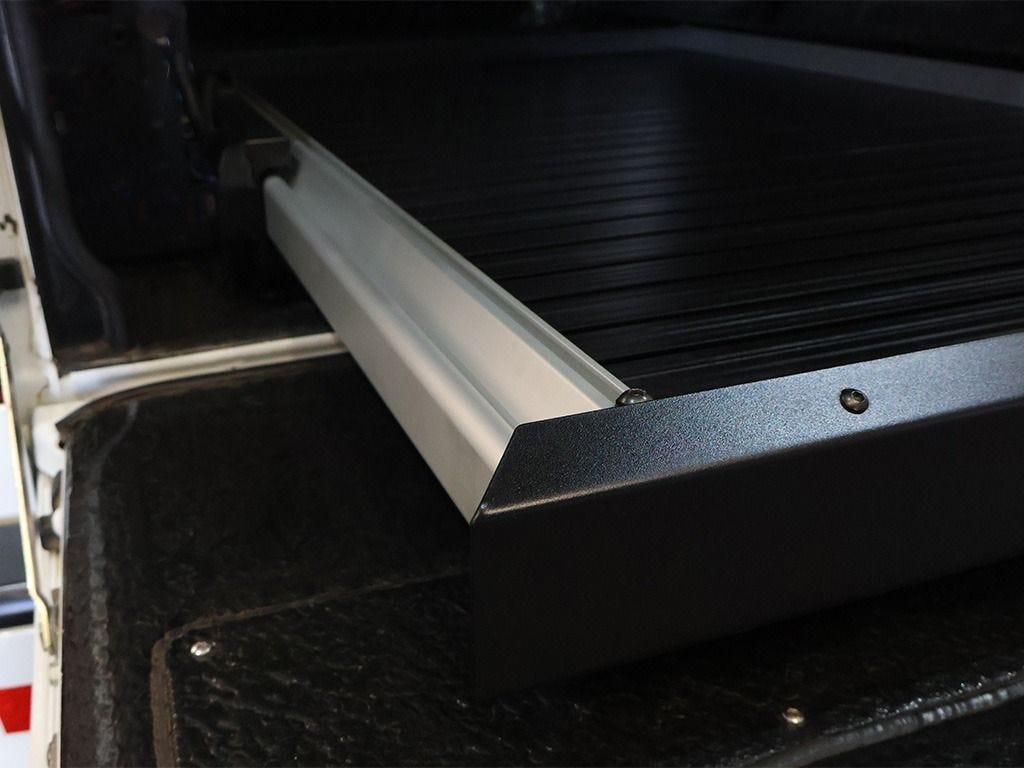

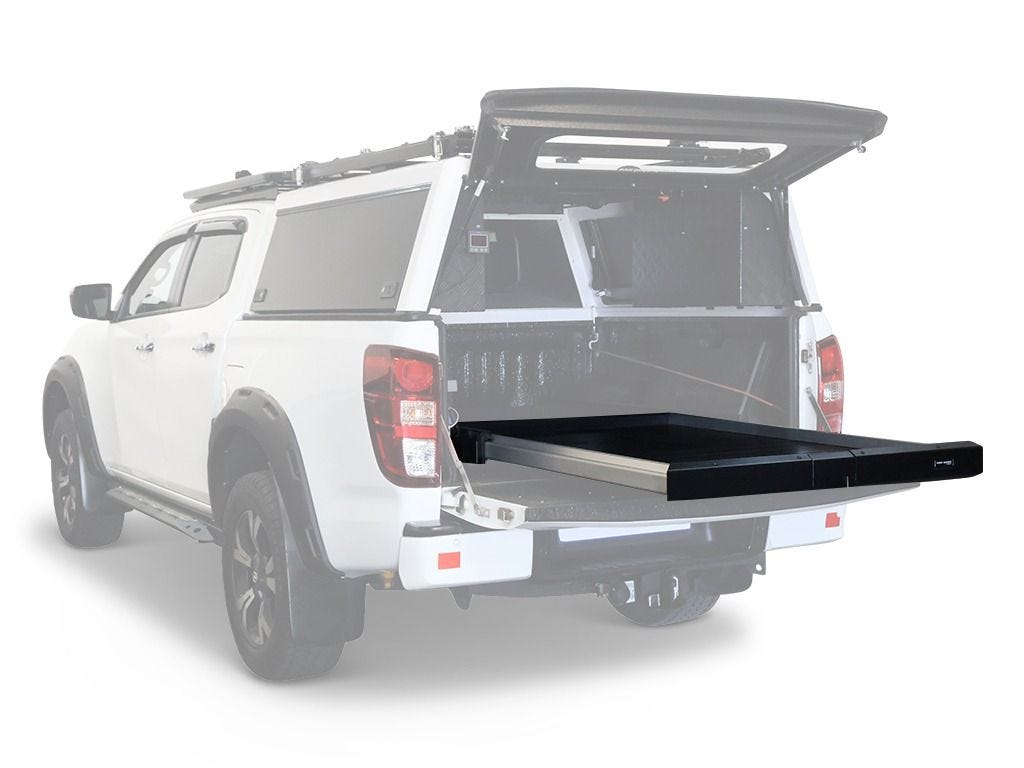

• High strength nylon wheels and sealed bearings allows the tray to smoothly extend out 1135mm/ 44.7", 67% from the anchored base.

• Three (3) locking positions allow the slide to hold in place when open, in a partially open and closed position.

• Rated for an evenly distributed load of 350kg / 771.6 lbs when being extended.

• Rated for an evenly distributed load of 500kg / 1102 lbs when locked in the closed position.

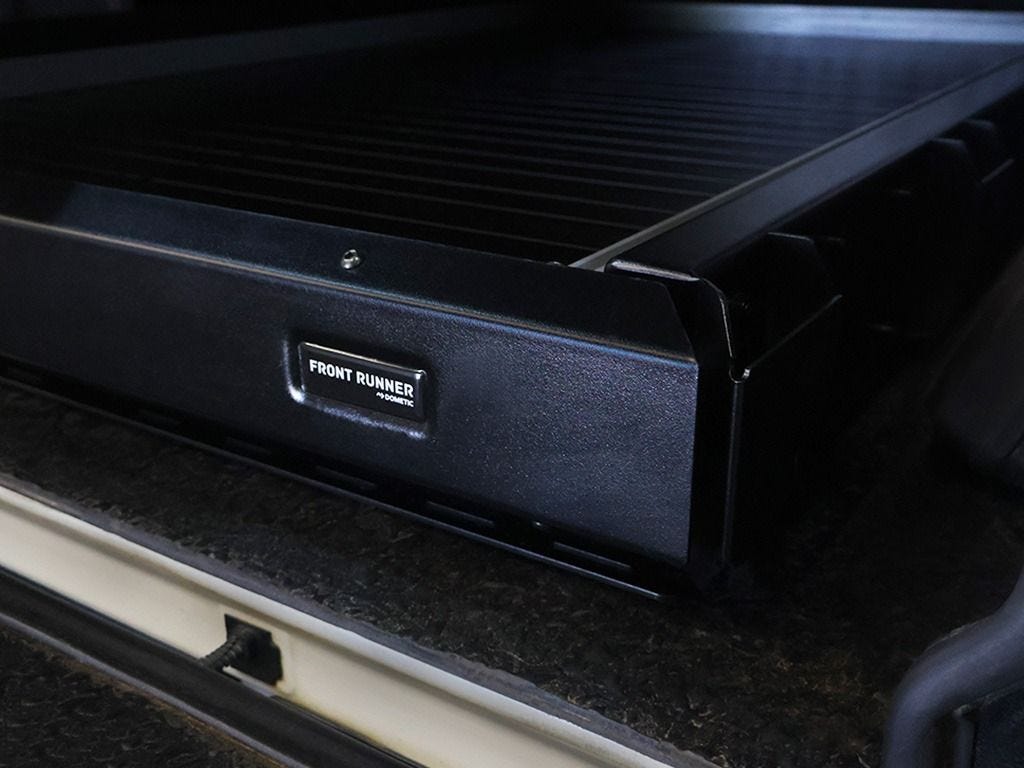

• Made of heat treated aluminium with anodised silver accents and mild steel ensures unmatched strength.

• Sealed in the same black powder-coating as Front Runner Dometic Racks to protect your Cargo Slide / Large from the elements.

• The Cargo Bed Slide has exterior mounting points to secure additional accessories.

• The weatherproof design enables installation onto open Load Beds as well as
• Load Beds fitted with a Front Runner Pro Bed Rack, canopy, camper shell, or other style load bed cover.

• Note: This cargo slide will only fit certain sized load beds. Please see SPECS for exact product measurements and to determine if this product is the right fit.

Specs:

• Large Cargo Slide:
  • SKU: SSBS019
  • Consists of:
    1 x Cargo Bed Slide Bottom Frame / Large
    1 x Cargo Bed Slide Tray / Large
    Fitting Instructions
    Fitment Guide
  • Materials used:
    Anodised silver & black powder-coated high strength steel
  • Product Dimensions:
    Closed Dimensions:
    1790mm (70.5") L x 1025mm (40.4") W x 140mm (5.5") H
  • Internal Dimensions:
    1705mm (67.1") L x 819mm (32.2") W x 40mm (1.6") H
    85mm (3.5") H (from Load bed)
  • Maximum Extension:
    1135mm (44.7") L
  • Weight:
    63kg (139 lbs)
  • Load Rating Closed:
    500kg (1102lbs) Evenly Distributed
  • Load Rating Extended:
    350kg (772lbs) Evenly Distributed
• Medium Cargo Slide:
  • SKU: SSBS017
  • Consists of:
    1 x Cargo Bed Slide Bottom Frame / Medium
    1 x Cargo Bed Slide Tray / Medium
    Fitting Instructions
    Fitment Guide
  • Materials used:
    Anodised silver & black powder-coated high strength steel
  • Product Dimensions:
    Closed Dimensions:
    1490mm (58.7") L x 1100mm (43.3") W x 140mm (5.5") H
  • Internal Dimensions:
    1402mm (55.2") L x 893mm (35.2") W x 40mm (1.6") H
    85mm (3.5") H (from Load bed)
  • Weight:
    58kg (127.9 lbs)
  • Load Rating:
    350kg (771.6 lbs)
• Small Cargo Slide:
  • SKU: SSBS015
  • Consists of:
    1 x Cargo Bed Slide Bottom Frame / Small
    1 x Cargo Bed Slide Tray / Small
    Installation Hardware
    Fitting Instructions
  • Materials used:
    Black powder-coated aluminium
    Anodised silver aluminium
  • Product Dimensions:
    1284mm (50.6") L x 1025mm (40.4") W x 140mm (") H
  • Load Area:
    1200mm (5.5") L x 819mm (32.2") W
  • Maximum Extension:
    832mm (33") L
  • Weight:
    50kg (110lbs)
  • Load Rating Closed:
    500kg (1102lbs) Evenly Distributed
  • Load Rating Extended:
    350kg (772lbs) Evenly Distributed
