Product Description

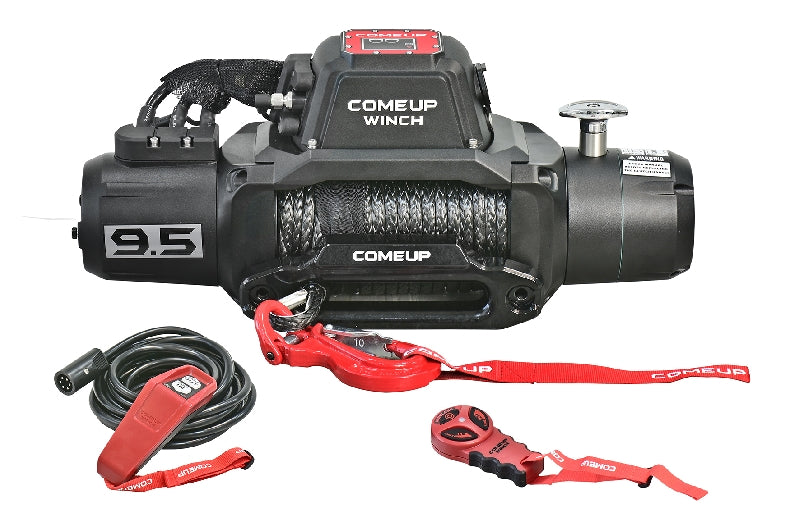

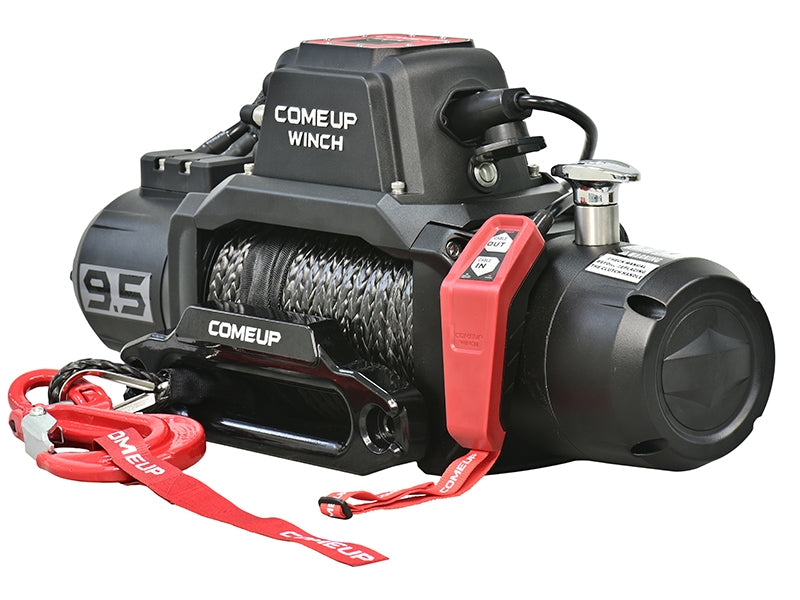

Get ComeUp's new Solo Series Winch!
Description:
- 12V DC severe duty winch rated at 9,500 lb pulling meets and exceeds your expectations.
- Heavy duty series wound motor equipped with thermal protection switch alters.
- Trendy design on winch body with a new stylish control pack dedicated to providing an excellent winching experience.

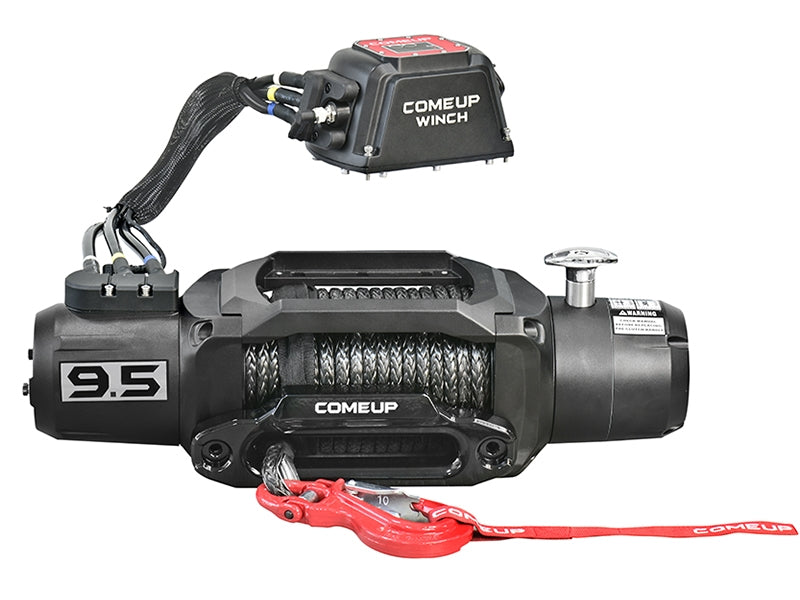

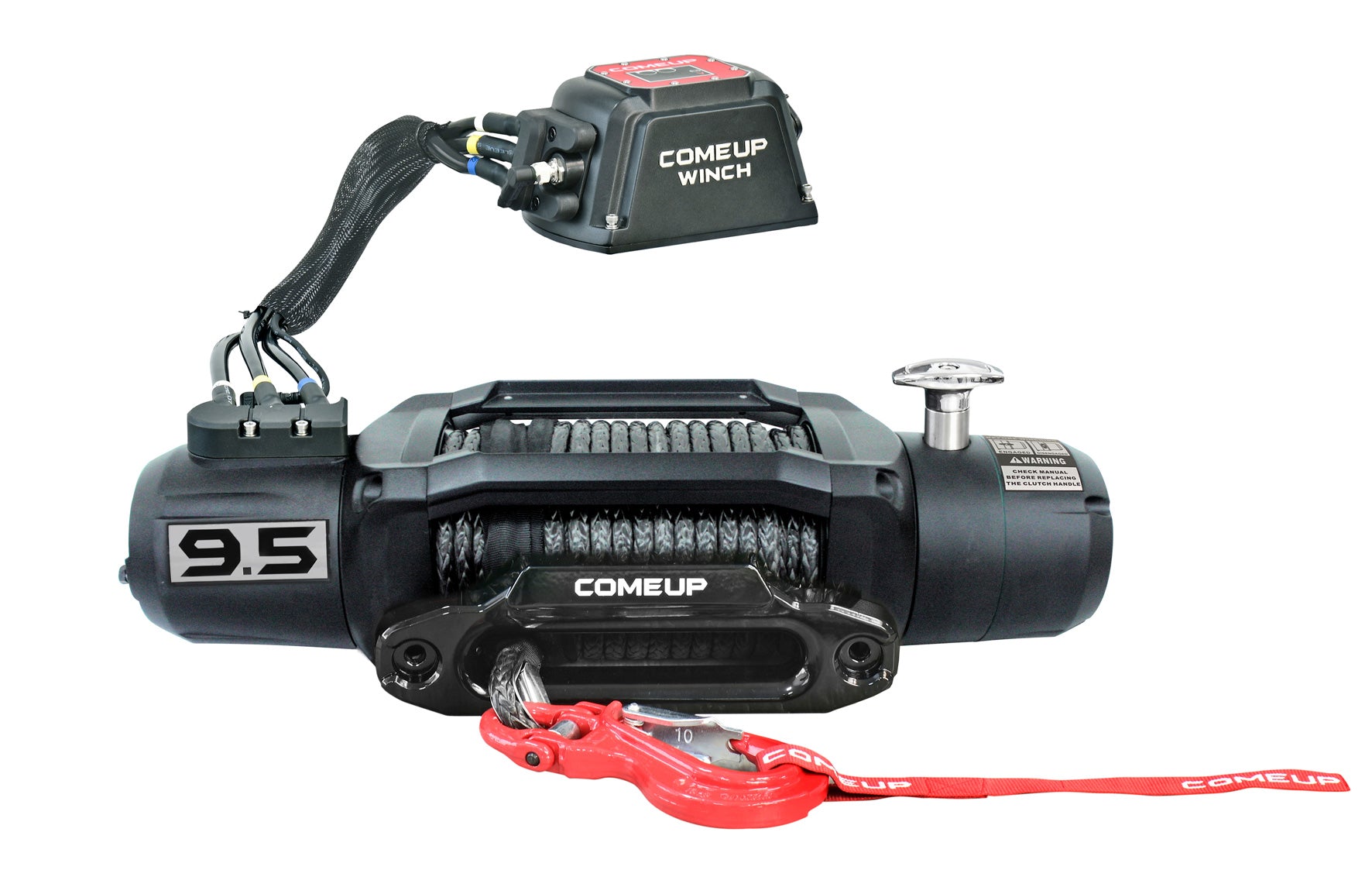

- The convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.

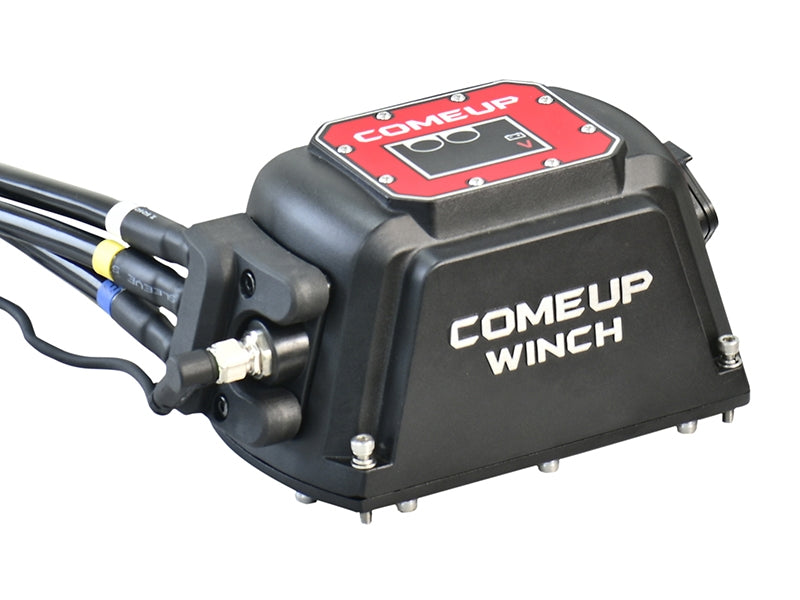

- Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
- Newly designed wireless and wired controllers offer better holding and reliable operation.
- The wired controller has a magnet design, allowing it to be put on idle vehicle body.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- 12-strand construction synthetic rope is coated to improve abrasion and has no water absorption.
- The U.S., Germany, U.K., France, etc., patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
- Built-in radio control module includes functions:
- On/off switch prevents the vehicle battery from draining when no use
- Motor over-heating warning by LED indicators and beeper

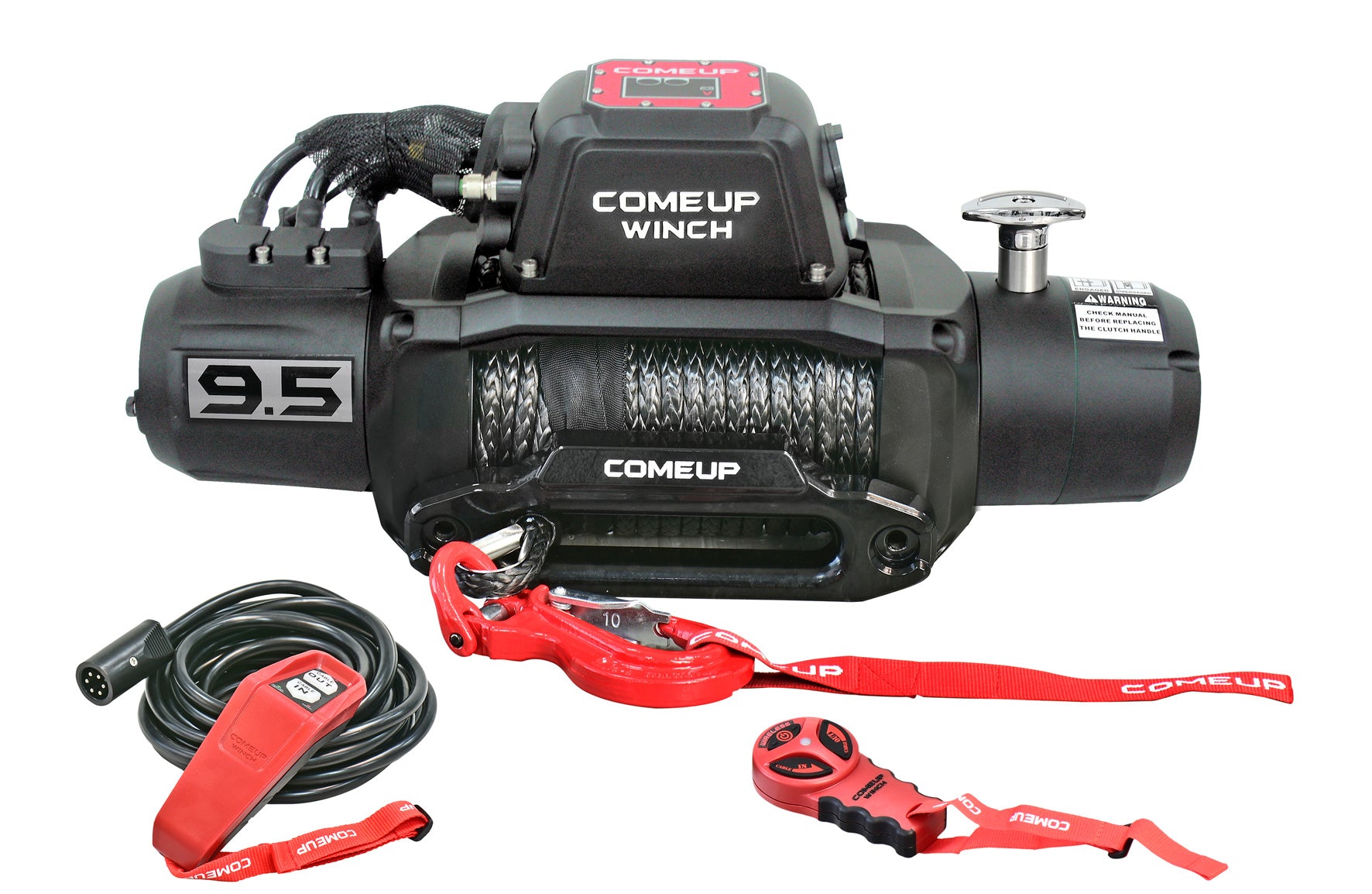

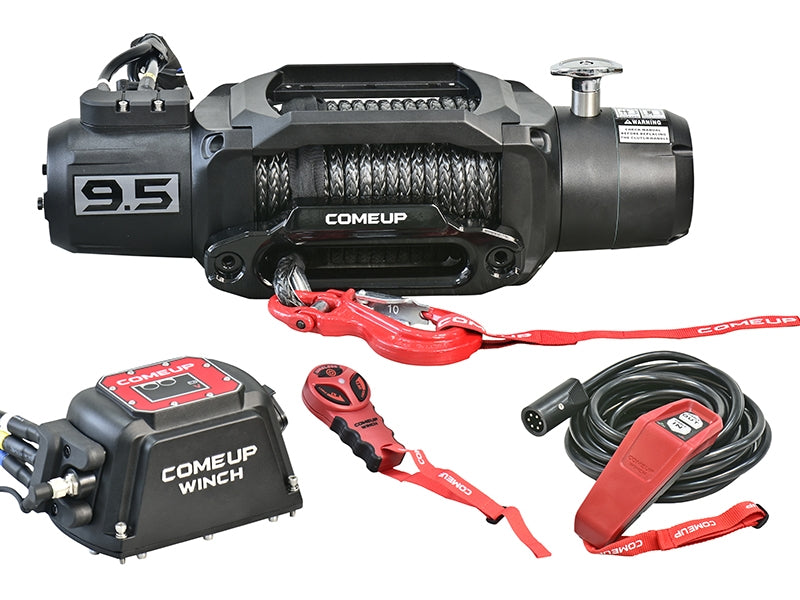

Includes:
- Hawse fairlead
- Built-in wireless remote control modules
- Remote control w/5 m (17’) cord
- Bridge control box
- Synthetic rope w/sling hook
- 1.8 m (6’) 2 gauge battery lead
- Handsaver strap
Specifications:
- Part number: PN 291200 (12V)
- Rated line pull: 4,309 kg / 9,500 lb single line
- Line speed (1st layer): 14.8 mpm / 48.6 fpm 60 A at 12V no load
2.2 mpm / 7.2 fpm 380 A at 12V full load - Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 159:1

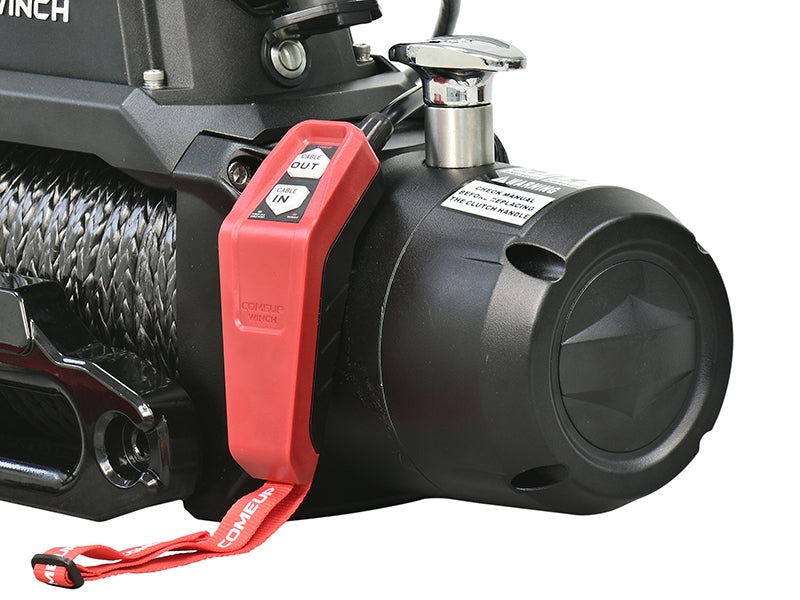

- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
- Control: Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
- Rope type: Synthetic rope
- Rope size: 10 mm x 30.5 m (3/8” x 100’)
- Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
- Mounting : Foot forward or foot down mounting workable
- Finish : Matte black powder-coated
