Product Description

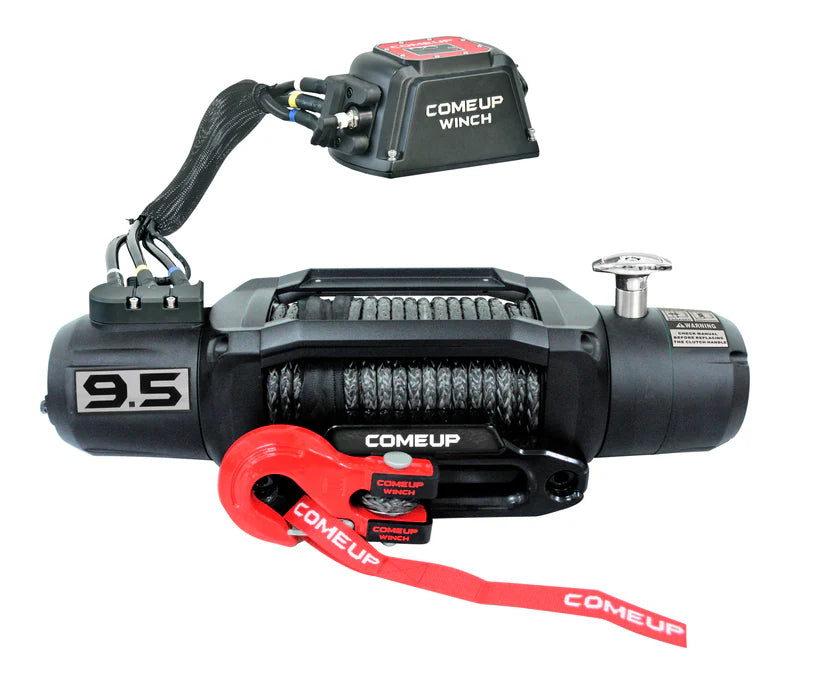

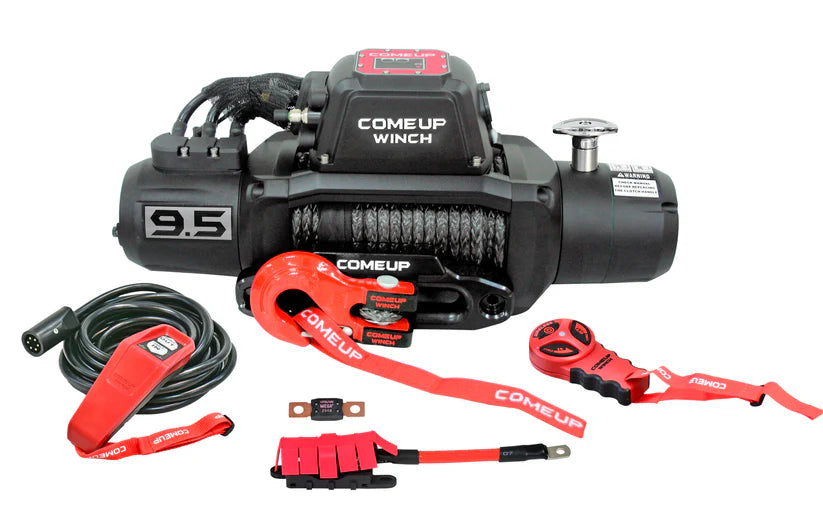

Overview: Introducing the COMEUP SOLO 9.5rs Trail Edition, the ultimate winch designed for overland expedition and packed with Trail Edition features includes the innovative BossHook-M and a specialized winch fuse kit for superior functionality and protection.
Specifications:
- Rated Line Pull 9,500 lbs (4,309 kg) single line
- Motor 5.0 hp / 3,730 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 159:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum
- Drum Size 2.5" x 9" (63.5 x 228 mm)

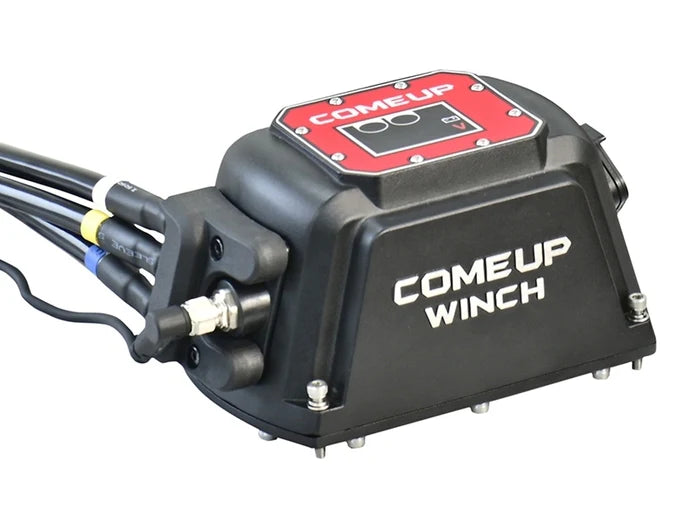

- Control Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
- Rope Type Synthetic Rope
- Rope Size 3/8" x 76' (10 mm x 23.2 m)
- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
- Winch Weight 76.9 lb
- Gross Weigh 91.5 lb

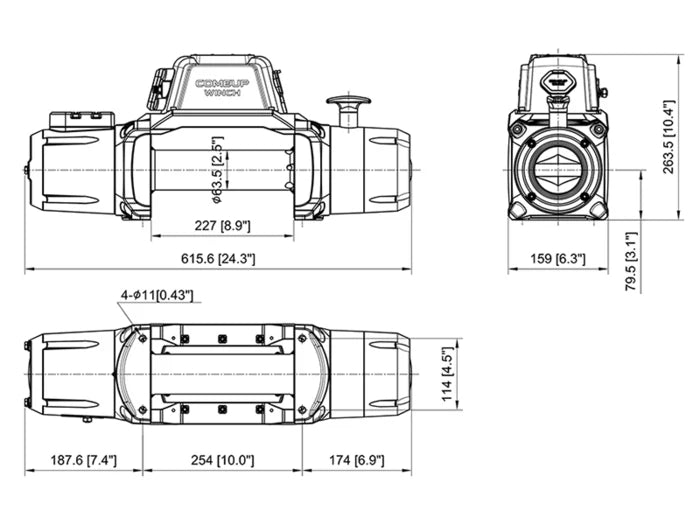

- Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
Features & Benefits:
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 14.8 / 48.6 | 60 |
| 907 / 2,000 | 4.8 / 15.7 | 115 |
| 1,814 / 4,000 | 3.6 / 11.8 | 210 |
| 2,722 / 6,000 | 2.8 / 9.2 | 245 |
| 3,629 / 8,000 | 2.3 / 7.6 | 280 |
| 4,309 / 9,500 | 2.2 / 7.2 |
380 |
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 4,309 / 9,500 | 5.1 / 16.7 |
| 2nd | 3,472 / 7,655 | 11.7 / 38.4 |
| 3rd | 2,908 / 6,410 | 19.7 / 64.6 |
| 4th | 2,501 / 5,514 | 23.2/76.0 |
