Product Description
Description:

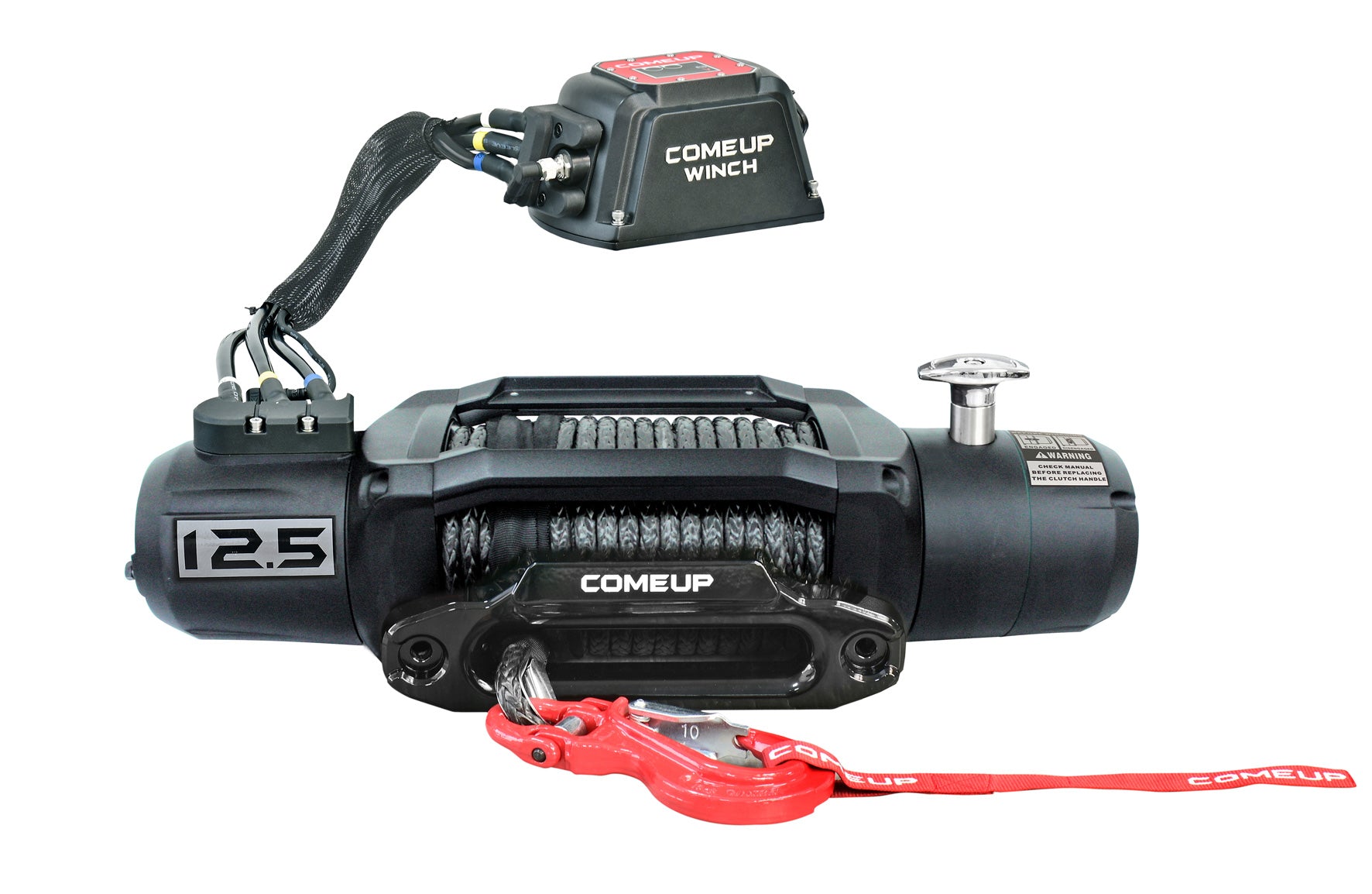

- 12V DC severe duty winch rated at 12,500 lb pulling meets and exceeds your expectations.
- Heavy duty series wound motor equipped with thermal protection switch alters.
- Trendy design on winch body with new stylish control pack dedicated to provide excellent winching experience.
- Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.

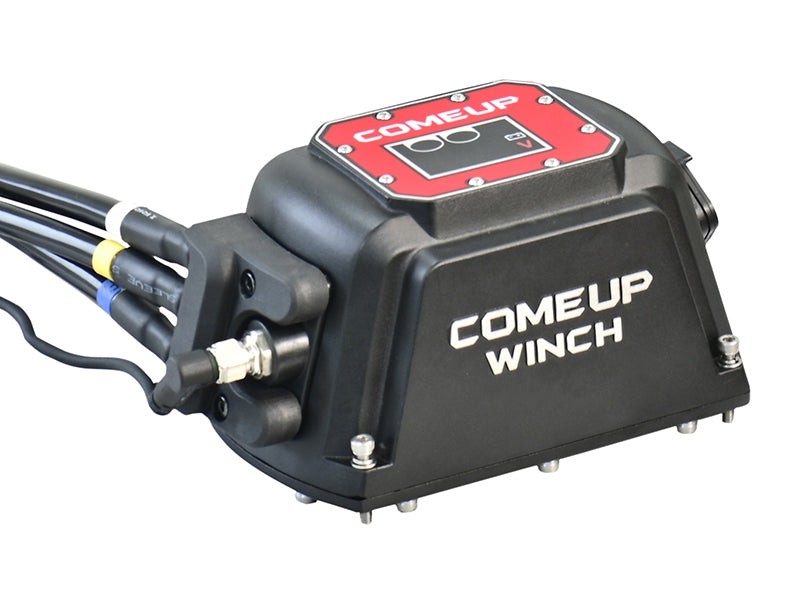

- Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
- Newly designed wireless and wired controllers offer better holding and reliable operation.
- Wired controller has magnet design, allowing it to put on idle vehicle body.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- 12- strand construction synthetic rope is coated to improve abrasion and has no water absorption.
- The U.S., Germany, U.K., France, etc. patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
- Built-in wireless control module includes functions:
- On/off switch prevents the vehicle battery from draining when no use
- Motor over-heating warning by LED indicators and beeper

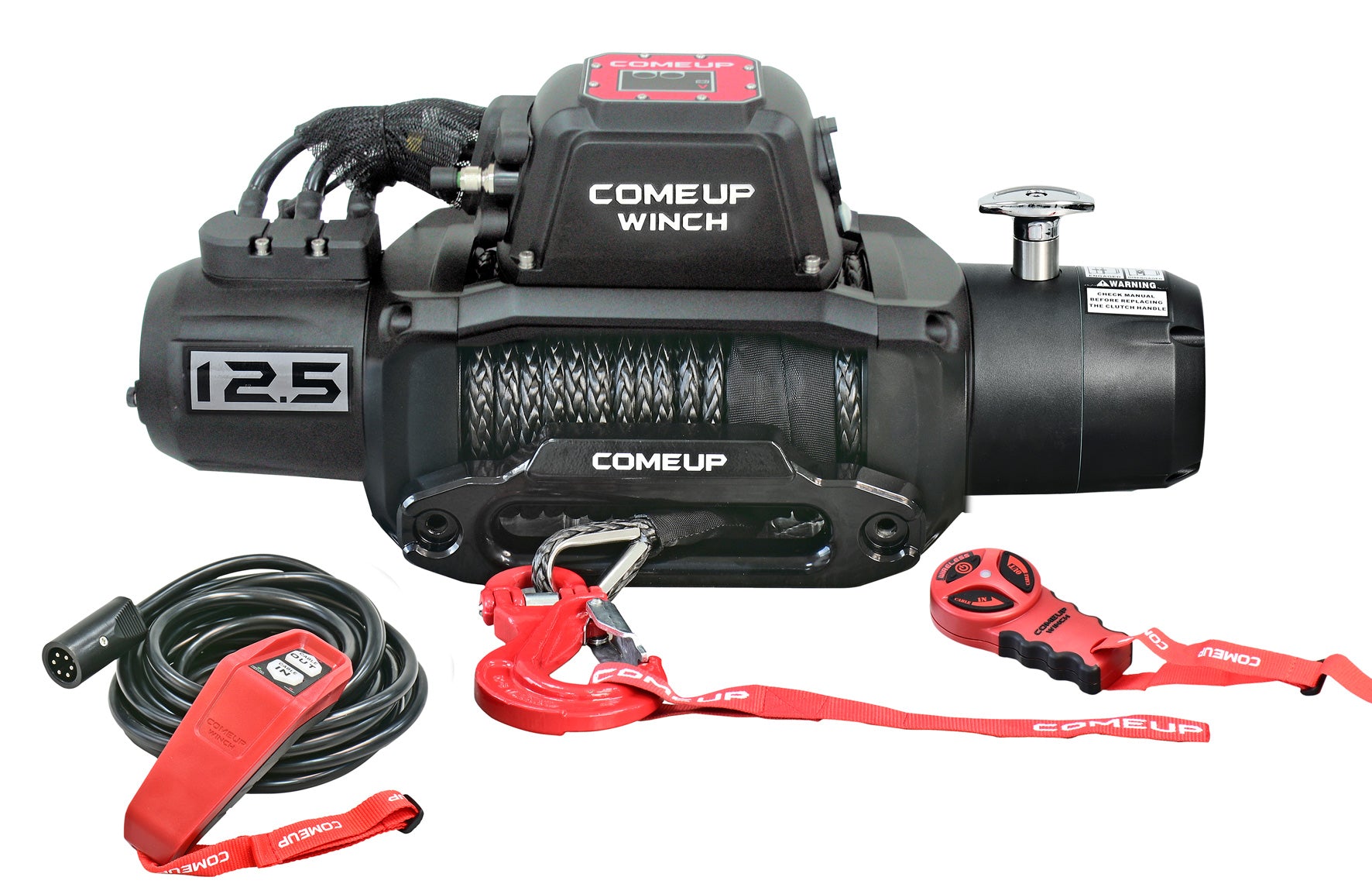

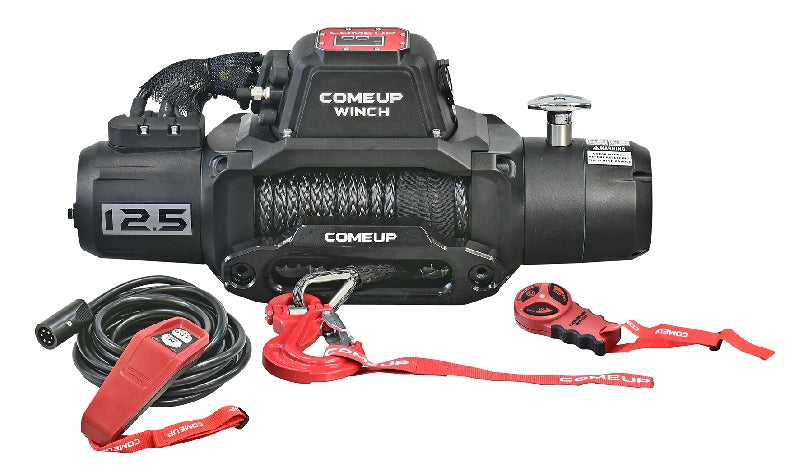

Includes:
- Hawse fairlead
- Built-in wireless remote control modules
- Remote control w/5 m (17’) cord
- Bridge control box
- Synthetic rope w/sling hook
- 1.8 m (6’) 2 gauge battery lead
- Handsaver strap
Specifications:
- Part number: PN 291202 (12V)
- Rated line pull: 5,670 kg / 12,500 lb single line
-
Line speed ( 1st layer): 7.7 mpm / 25.3 fpm 45 A at 12V no load
0.9 mpm / 3.0 fpm 470 A at 12V full load - Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 225:1
- Clutch (freespooling): Rotating ring gear

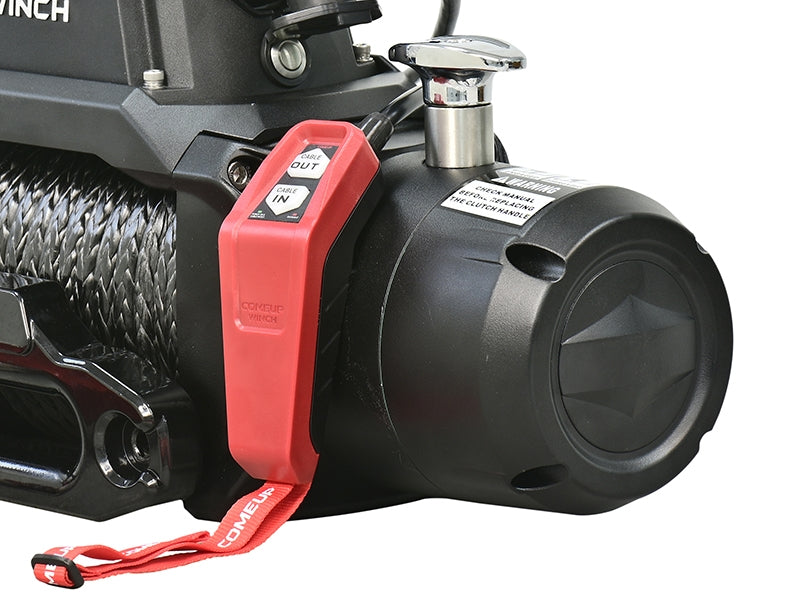

- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
- Control: Digital two-way wireless control and water-proof wired remote control with thermometric LED indicator
- Rope type: Synthetic rope
- Rope size: 11 mm x 25 m (7/16” x 82’)
- Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
- Mounting : Foot forward mounting workable
- Finish : Matte black powder-coated
