Product Description
Overview: ARB WINCH PRE-ORDER NOW!
The next generation is here with a compact all in one motor control design for clean fitment and smooth operation. Built with top tier components and proven through rigorous testing for performance and reliability.
Built-in Control - Power Isolation - Dual Connection Remote - 4-Stage Gear Box
Features & Benefits:

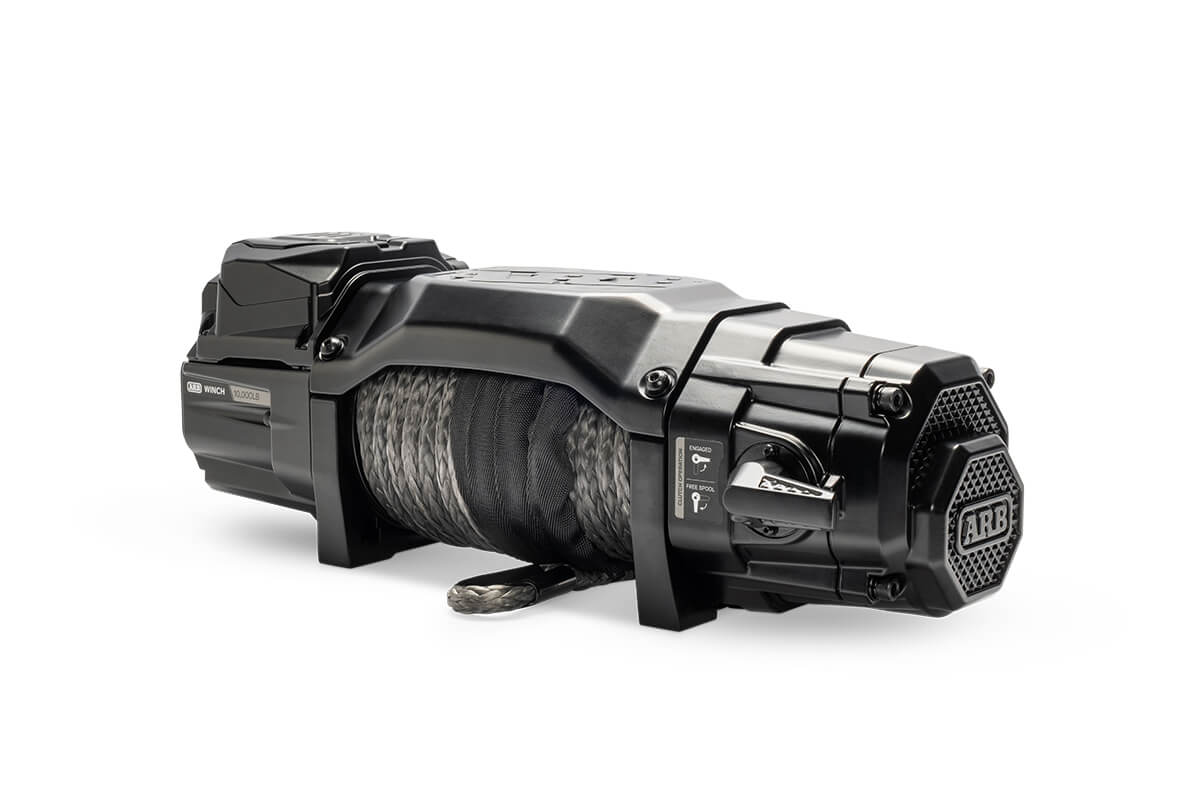

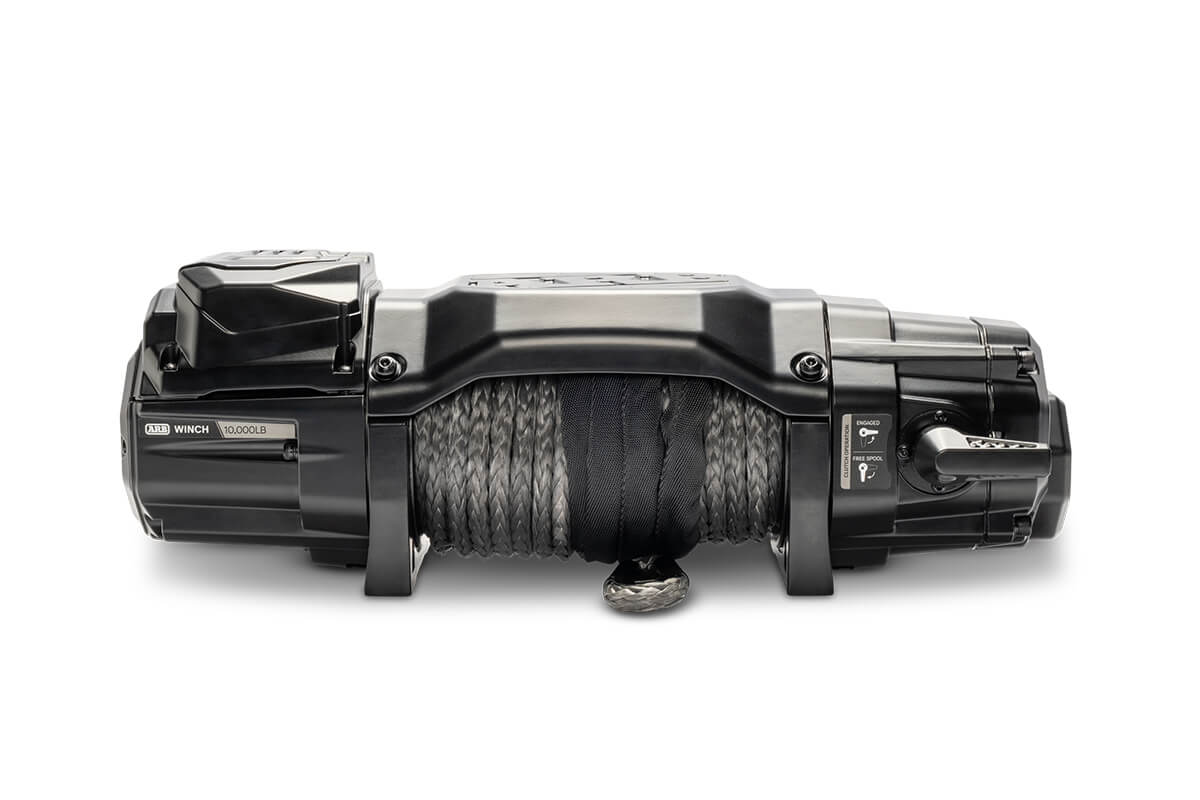

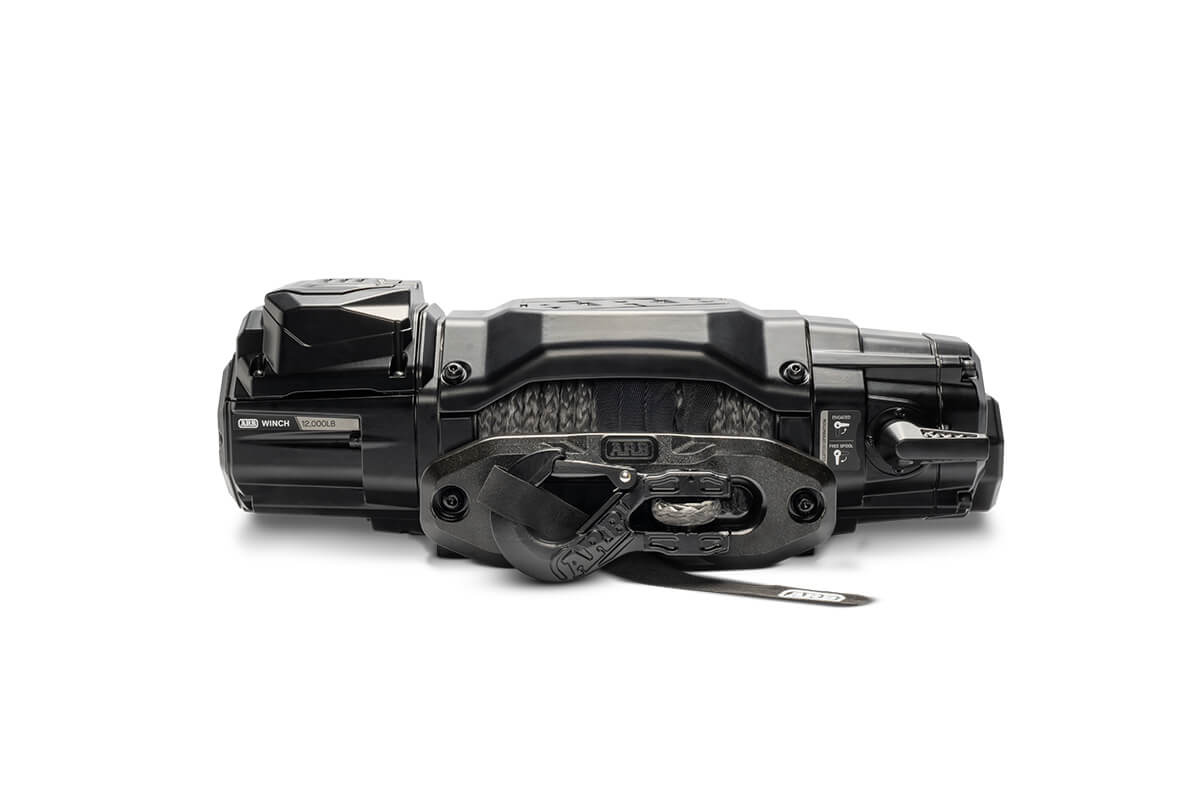

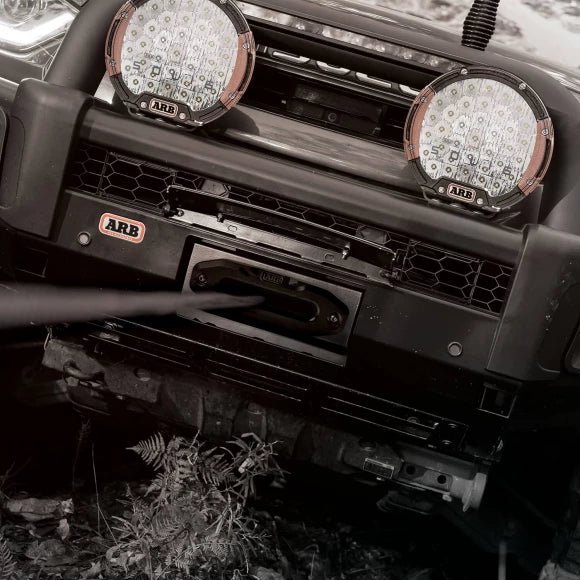

Built-in Control Box - The motor control unit is integrated within the winch for a clean fit that works with modern bumpers and vehicle sensors. The direct connection contactor improves motor efficiency so the system delivers smooth power and steady control without a separate control box.
- Custom Albright contactor built-in for seamless power

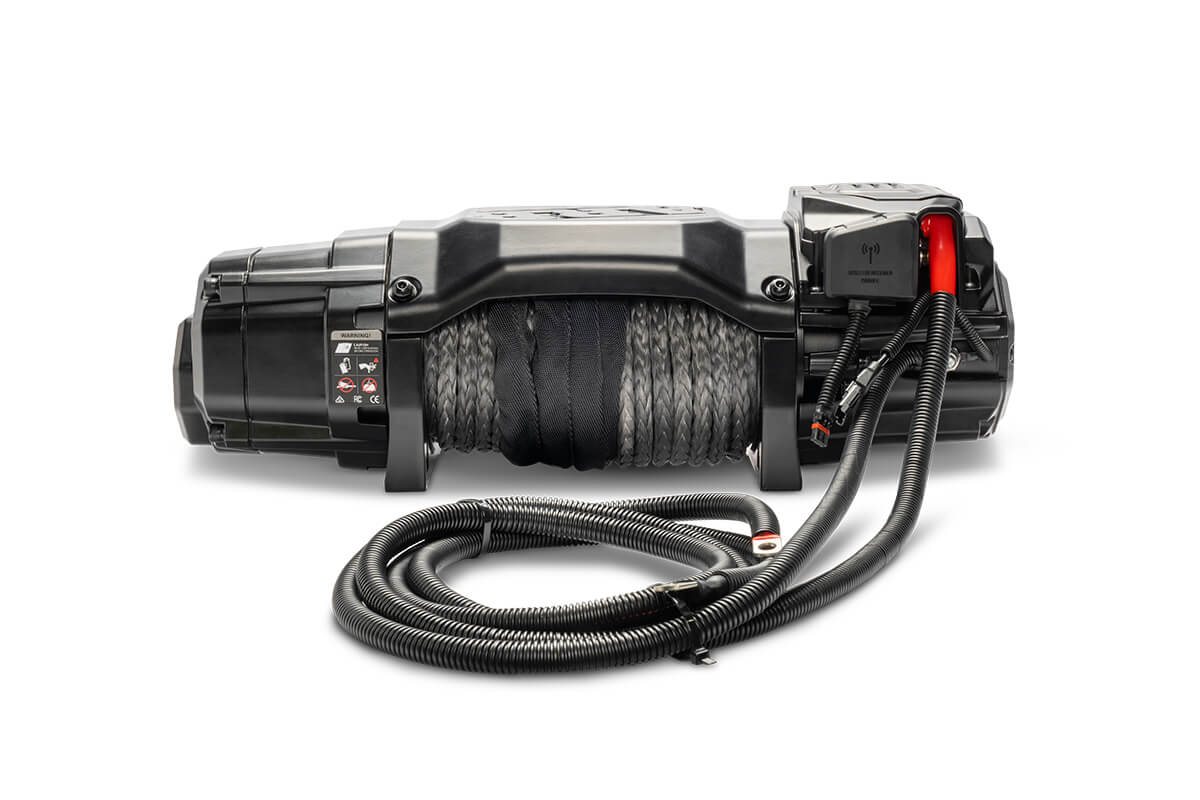

- Compact prewired design for quick installation
- 16-position clockable clutch handle for flexibility
- IP68 rated for water and dust protection
- Direct motor connection for maximum efficiency
Engineered for Strength & Reliability - ARB Winch is designed with a focus on durability, reliability, and long service life. Each unit is built with top tier components and validated through rigorous testing to ensure consistent performance in tough environments.
- 4-stage hardened steel gearbox for durability
- One-piece bridging plate for torsional rigidity
- Tuned 12V motor delivers fast line speed
- Gearbox mounted brake provides 100% load holding
Dual Remote Connection:
- Stay in control from anywhere with the compact hand controller. It offers a 40m wireless range or a 5m lead for flexibility.
- The 2.4GHz wireless connection eliminates interference or remote conflict, ensuring strong and reliable control.
- Remote mounted control plug allows for low-profile or hidden winch mounting without losing the ability to hardwire the controller.

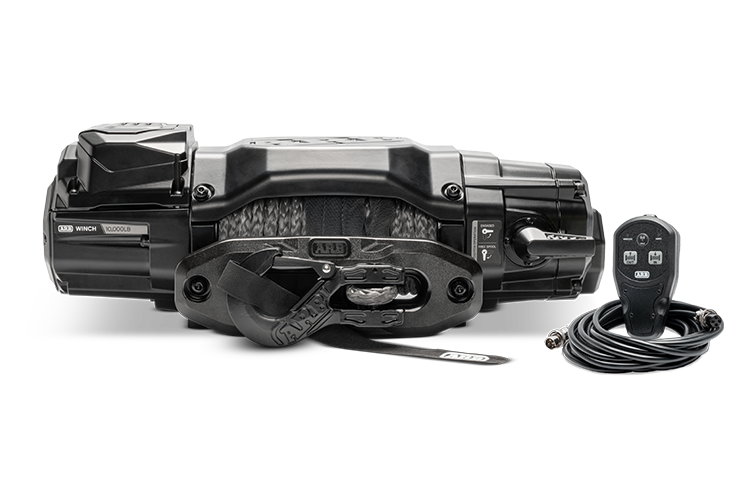

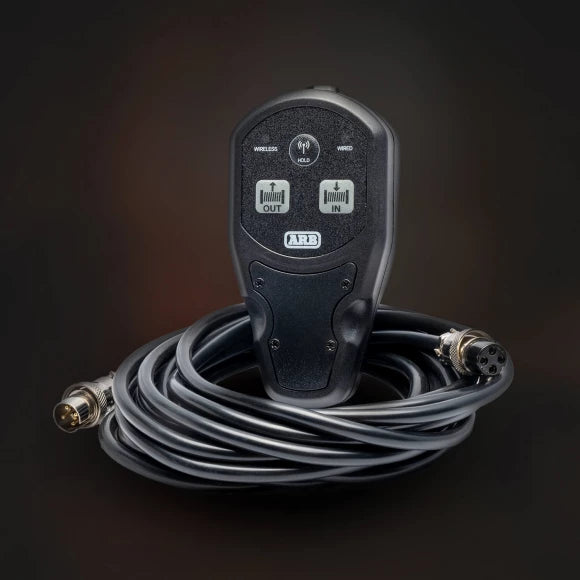

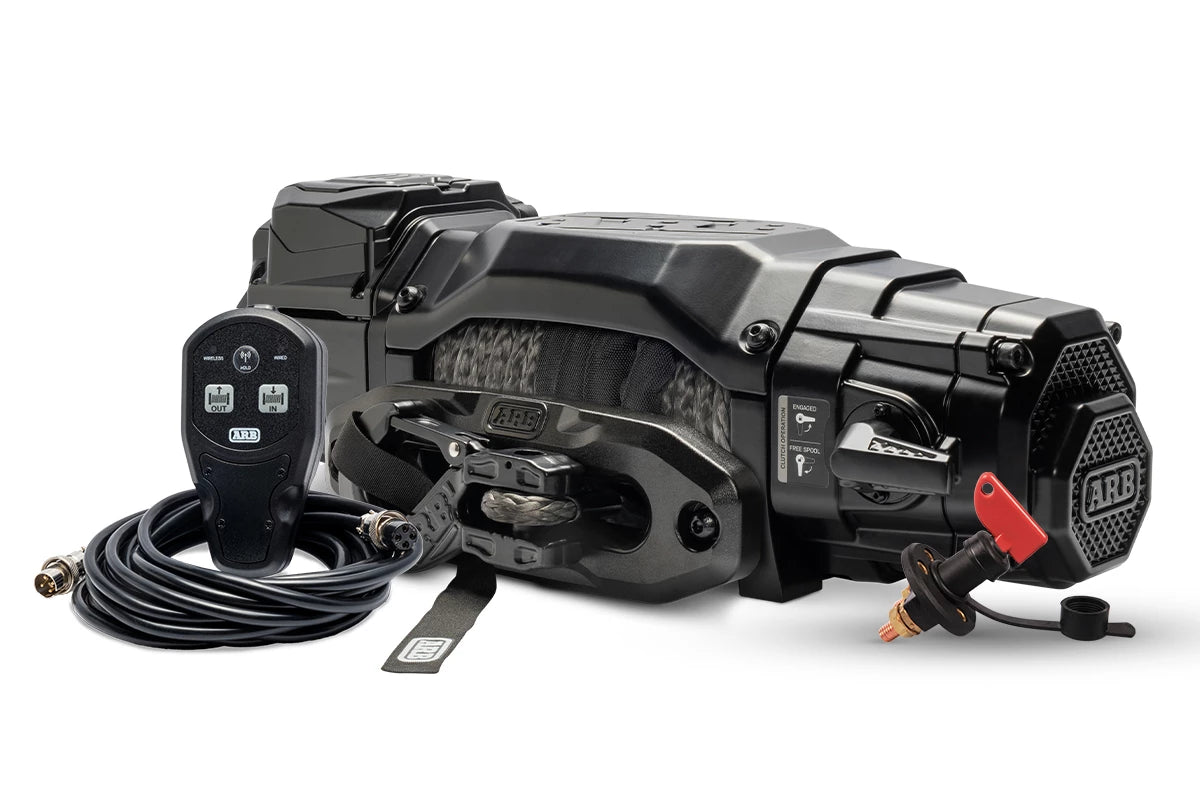

Control The Way You Want - The compact hand controller connects with a wireless range up to forty meters or with a five meter lead. A power isolation switch comes standard with a universal bracket, stainless lanyard, and a dust cover.
- Compact hand controller with 40m range and 5m lead
- Remote-mounted control plug for hidden installs
- 2.4GHz wireless connection prevents interference
- 500A power isolation switch with stainless lanyard and cover
Tech Specs: ARB 10K Winch / ARB 12K Winch
ARB 10K Winch:
RATED LINE PULL - 10,000 LBS | 4,536kg
ROPE - 10mm x 28m Grey Synthetic
FAIRLEAD - Forged 6061 Aluminum Hawse Fairlead
FITTED WEIGHT - 73.5 LBS | 33.3kg
MAX. LINE SPEED - 60 FT / MIN
MOTOR - 5.3 HP
ELECTRICAL CONTACTOR - Albright DC Contactor – 500 Amp
BRAKE - Gearbox Mounted 100% Load Holding Proportional Friction Brake
GEARBOX - 171:1 2-Stage Planetary and 2-Stage Spur
WATERPROOF RATINGS - IP68 Winch Motor and Gearbox
INCLUDES - Main Power Isolation Switch and Remote Mounted Control Plug
WARRANTY - Limited Lifetime Warranty and 7-Year Electrical Warranty
ARB 12K Winch:
RATED LINE PULL - 12,000 LBS | 5,443kg
ROPE - 11mm x 24m Grey Synthetic
FAIRLEAD - Forged 6061 Aluminum Hawse Fairlead
FITTED WEIGHT - 76 LBS | 34.5kg
MAX. LINE SPEED - 65 FT / MIN
MOTOR - 5.7 HP
ELECTRICAL CONTACTOR - Albright DC Contactor – 500 Amp
BRAKE - Gearbox Mounted 100% Load Holding Proportional Friction Brake
GEARBOX - 171:1 2-Stage Planetary and 2-Stage Spur
WATERPROOF RATINGS - IP68 Winch Motor and Gearbox
INCLUDES - Main Power Isolation Switch and Remote Mounted Control Plug
WARRANTY - Limited Lifetime Warranty and 7-Year Electrical Warranty
