Product Description

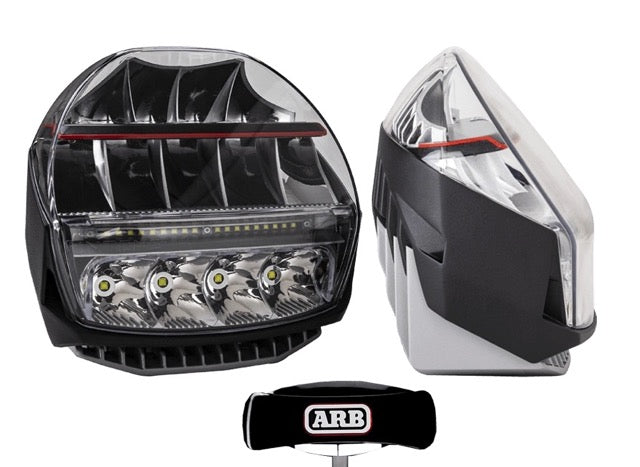

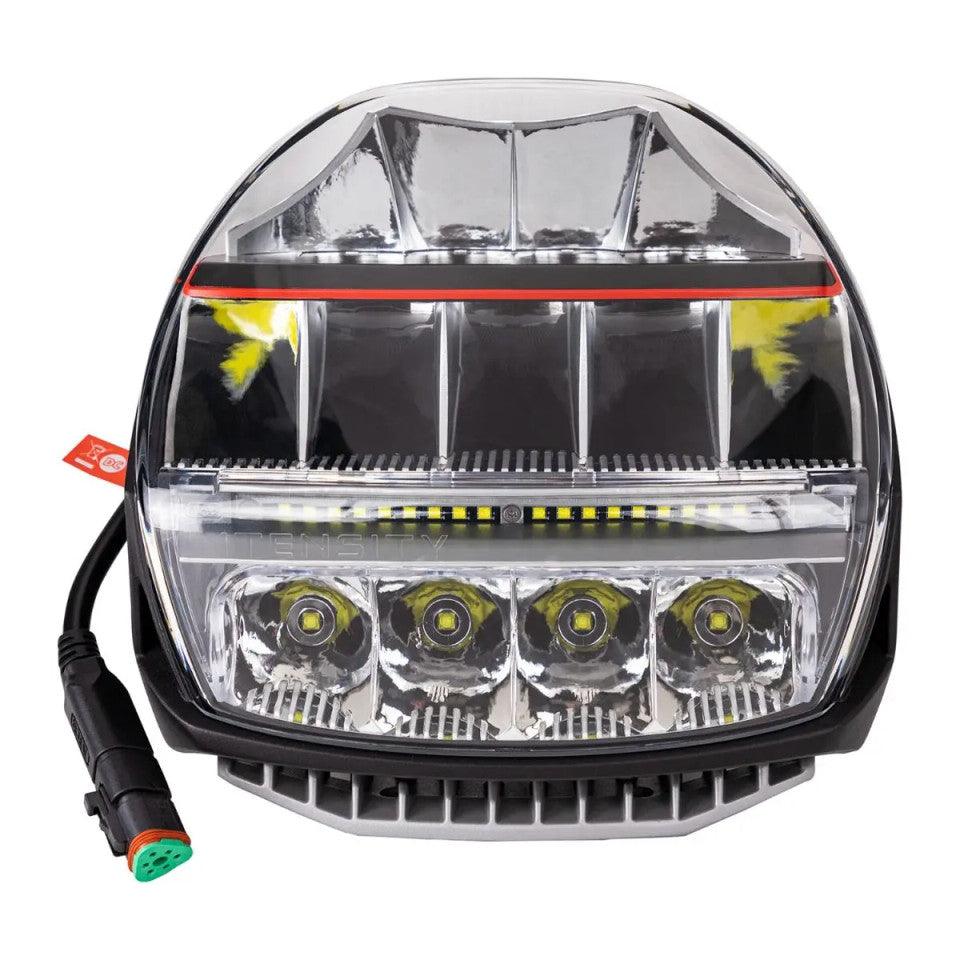

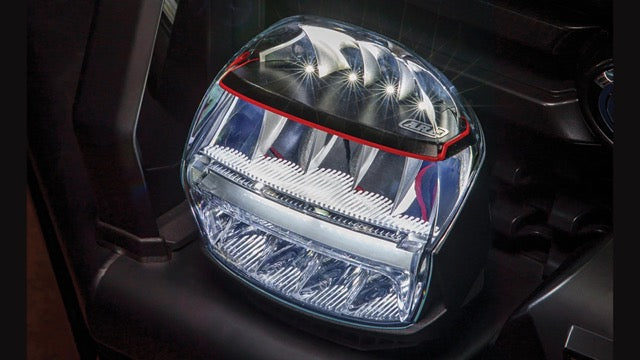

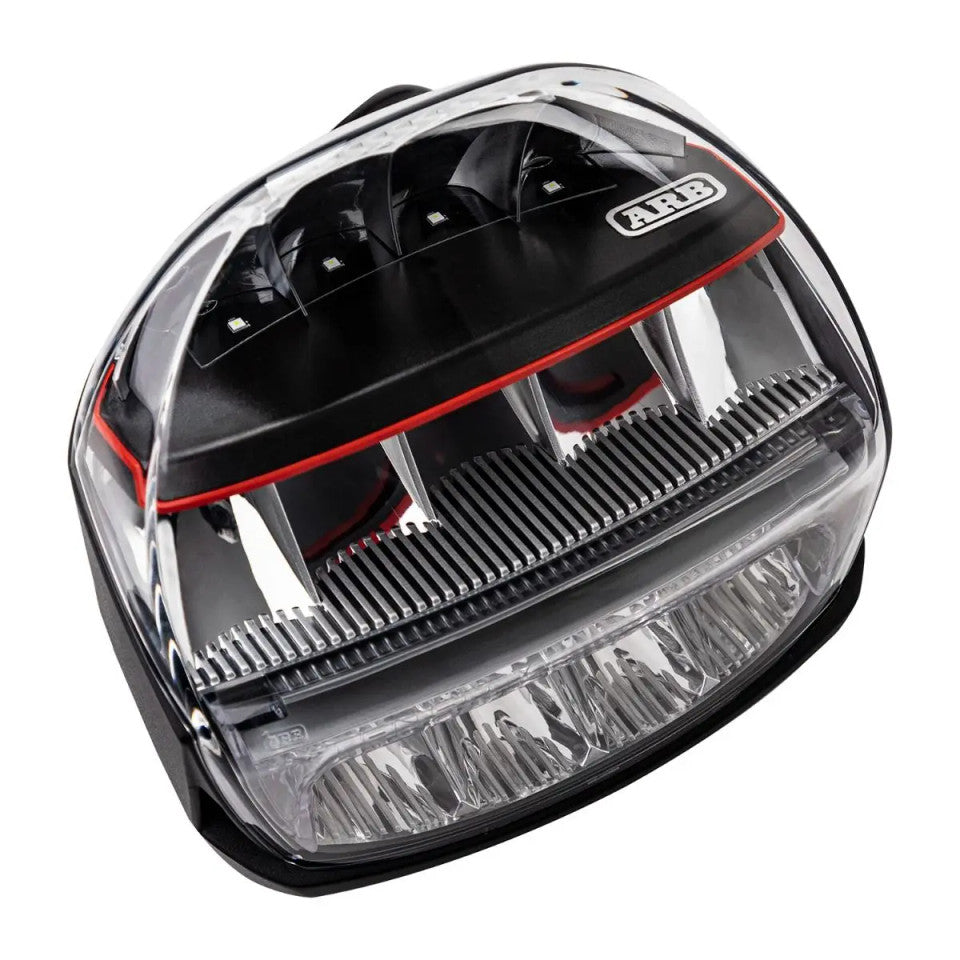

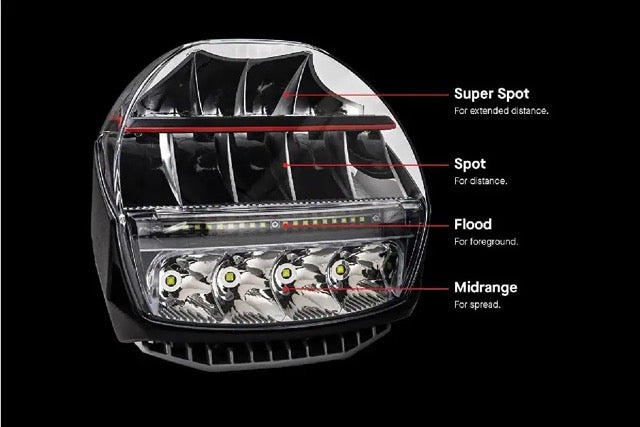

Overview: ARB Intensity IQ driving lights have been developed with performance front of mind, while delivering a design that complements modern vehicle styling. Their unique four-optic design (Super Spot, Spot, Flood and Midrange) provides an unlimited choice of light beams to suit any road condition.

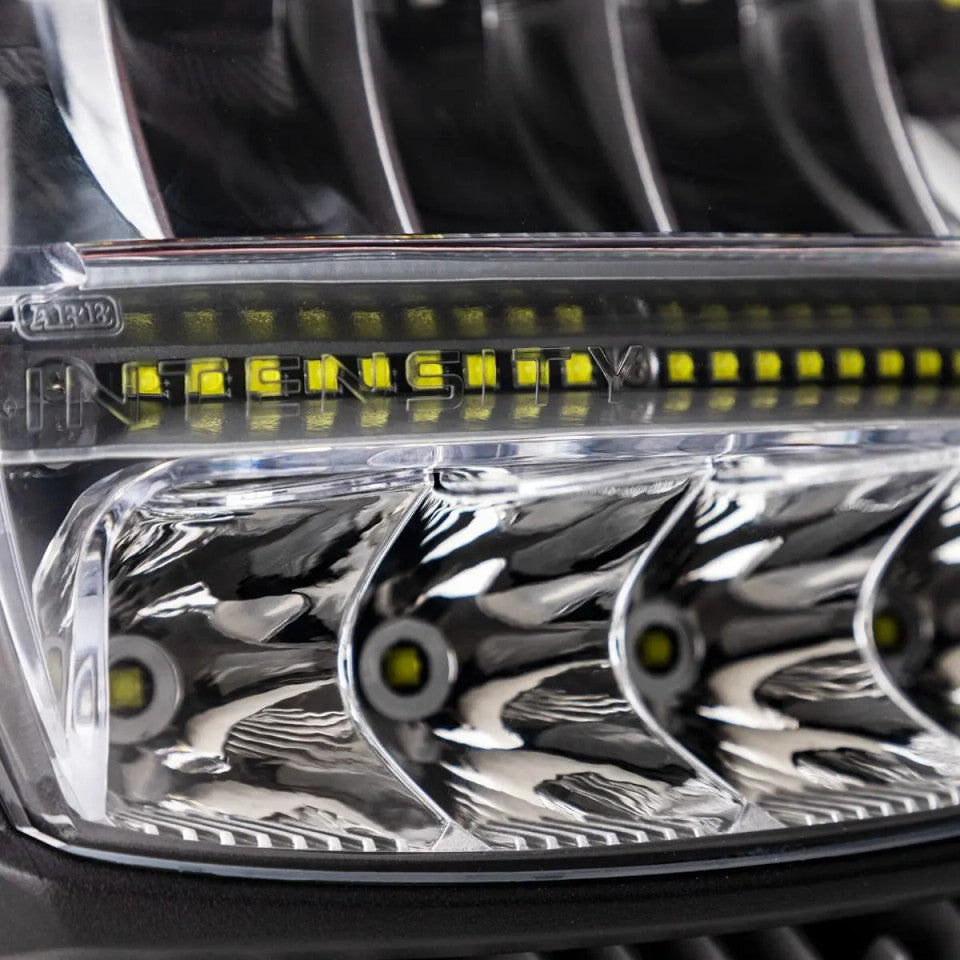

- The Super Spot and Spot optics, based on free-form reflector technology, produce an even spot beam for extended distance illumination.
- The Flood optic has a specially designed lens to maximize the light spread for excellent foreground visibility.
- The Midrange optics employ a conventional parabolic reflector to illuminate the midrange area.
INDEPENDENT CONTROL - Furthermore, the beam pattern of each of the two lights can be independently adjusted so you could run, for example, one focused on spot and one focused on flood!
To accompany the revolutionary Intensity IQ light, ARB has developed a physical switch controller that is equally intuitive.
Access up to eight different preset configurations at the click of a button, instantly changing the Intensity IQ to your needs. The Intensity IQ controller unlocks a world of possibilities when exploring, presenting a premium easy-to-use tool that will give you choice at the click of a button.
The Intensity IQ control sports a design that is both ergonomic and practical, with users being able to feel and adjust rather than relying on seeing the device itself. The quick-select buttons have a definitive edge when mounted in a hidden position and in the correct orientation, allowing for a quick and easy selection with a positive switching feel.
LIMITLESS BEAM PATTERNS - SWITCH CONTROLLED / APP CONTROLLED

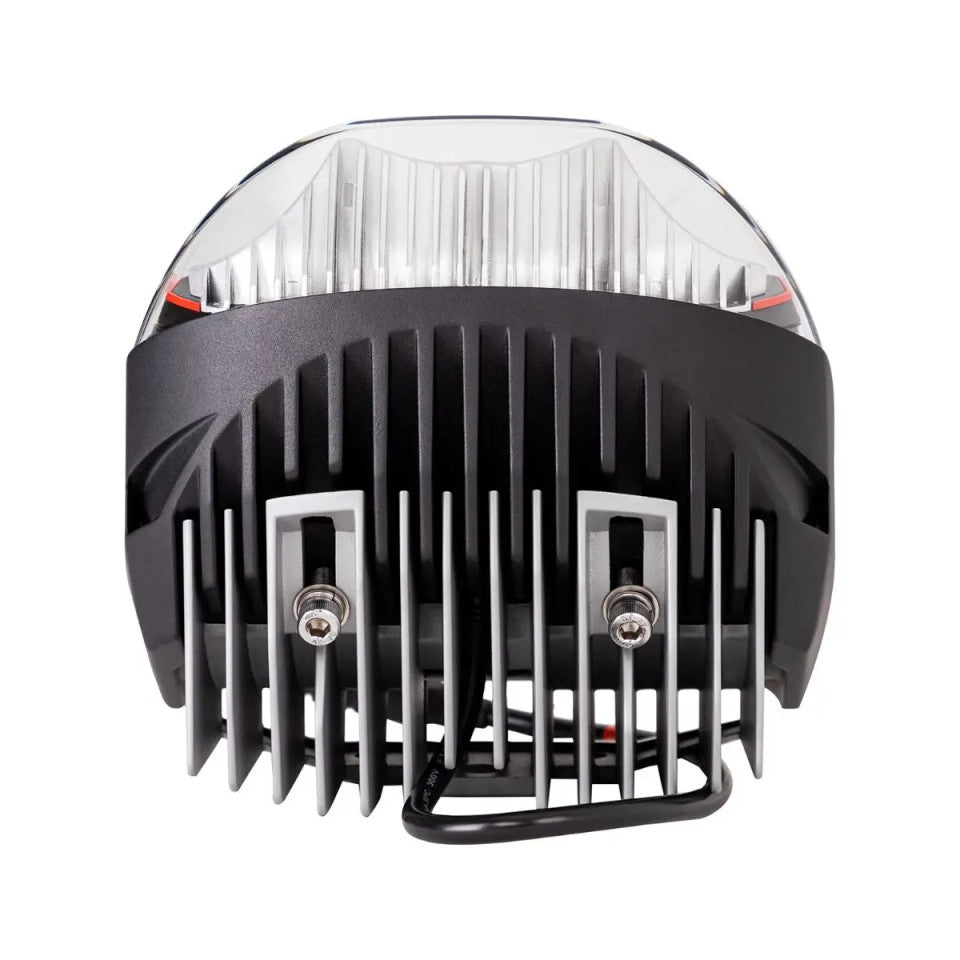

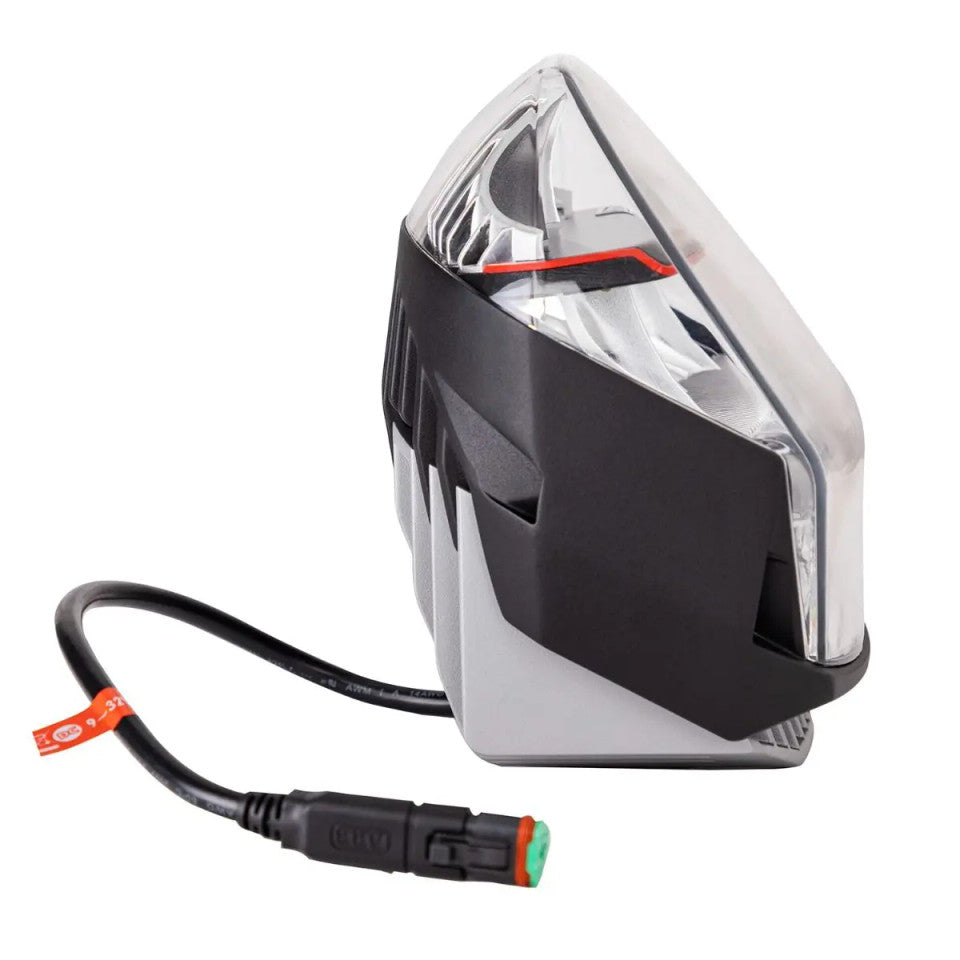

An innovative, sleek, new mounting bracket design allows adjustment of light beam angle and provides additional mass and a surface for cooling. A pair of lights provides 1 Lux @ 4429 feet with the Max Spot setting, and the Max Flood setting provides 1 Lux @ 2953 feet with up to 164 foot spread on each side of the vehicle.
The ARB Intensity IQ lights represent the perfect balance between visibility at distance and spread both down and across the road.
Protective Lens - Protected by the purpose-driven, virtually indestructible polycarbonate lens, the IQ is contained by a high quality material that will protect your driving light investment.

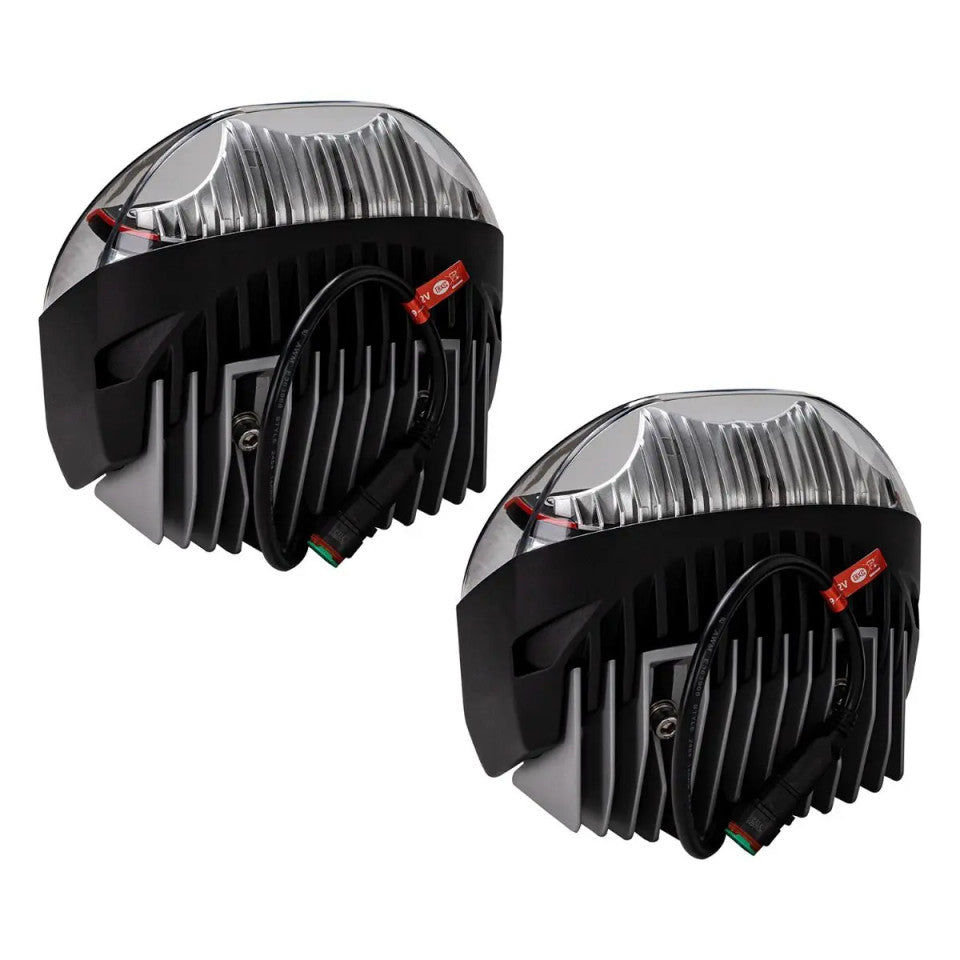

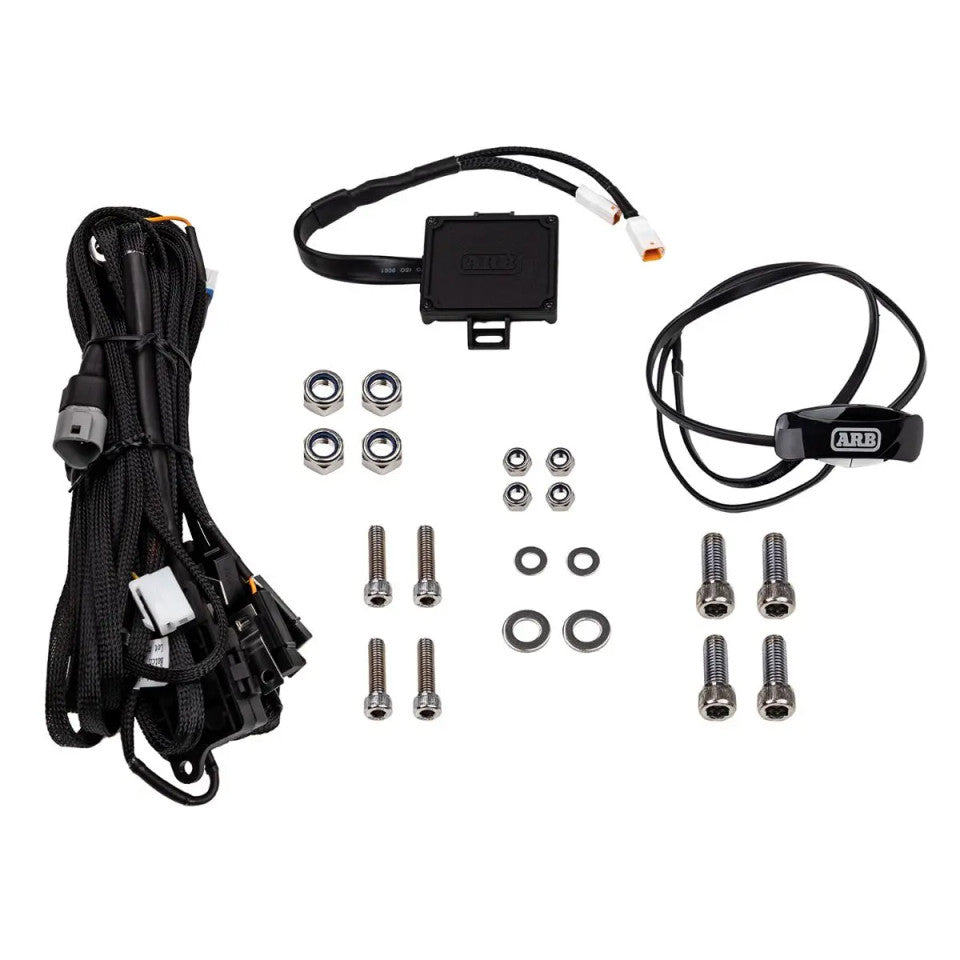

Kit Includes 2 Lights & Wiring Harness
Features & Benefits:
- Unique four-optic LED Configurations ? Super Spot, Spot, Flood, Midrange
- RoHS compliant
- Protected against RFI and EMC interference
- Durable, UV-resistant powder coat
- Virtually indestructible polycarbonate lens
- Multiple control options
- touchpad, ARB LINX, or smartphone app. Compatible with iOS and Android
- Onboard switch with up to eight customizable presets
- Work light and courtesy light functionality
- Pressure equalization breather
- Connect four Intensity IQ lights on one switch
- Up to 50,000+ LED lifespan
- IP68 Compliant to 3m ? dust/water ingress
Specifications:
- Input 11 – 32V
- Power 170 W @ 13.2V
- Current Draw 12.9A @ 13.2V
- Output – Raw Max Spot 7,070 lumens Max Flood 14,060 lumens
- Output – Effective Max Flood 6,666 lumens Max Combo 6,265 lumens Max Spot 6,613 lumens
- Distance @ 1 Lux (1 Pair) Max Spot 1350m / 4429ft Max Combo 1105m / 3625ft Max Flood 900m / 2953ft
- Operating Temperature (°C) -40°C to +80°C
- Operating Temperature (°F) -40°F to +176°F
- Color Temperature 5700 – 6200 Kelvin
- Weight 3.8kg (8.4lbs)
- Dimensions (inches) 8.7″ (w) x 8.5″ (h) x 5.6″ (d)
