Product Description
Overview: Agile & Alcon are happy to present their heavy-duty big brake kit for Mercedes Sprinter!
We’ve spent the better part of a year working with the engineers at Alcon to develop a Sprinter specific complete front & rear brake upgrade kit! As many of you have experienced, the stopping power of the factory brakes leaves more to be desired, especially on heavier built RVs
! NOTE: Fit notes: AO Big Brake rotors have a -16 mm offset compared to the factory rotor hats. Because of the wider track width after installation, wheel spacers are no longer required/recommended on RIP Kit equipped vehicles. This brake kit is not compatible with vehicles equipped with an electronic parking brake.
Mercedes Sprinter 2500 (2wd/4x4/AWD)
Second Generation (NCV3/906): 2014 – 2018
Third Generation (VS30/907): 2019+
2023 (Requires 17" Wheels)
Requires truck freight shipping - we will contact you with a shipping quote before processing payment.
Features & Benefits:
- Ductile Iron caliper housing providing maximum strength and stiffness as well as high resistance to impact and fatigue
- Epoxy acrylic paint over acid zinc finish for maximum corrosion protection
- Zinc-finished iron calipers for maximum corrosion protection
- High friction pads increase stopping power
- Military-grade high-temperature seals & wipers for dirt exclusion, pad push-back springs for optimum off-road wear resistance, and inboard bleed screws for increase tamper-proofing

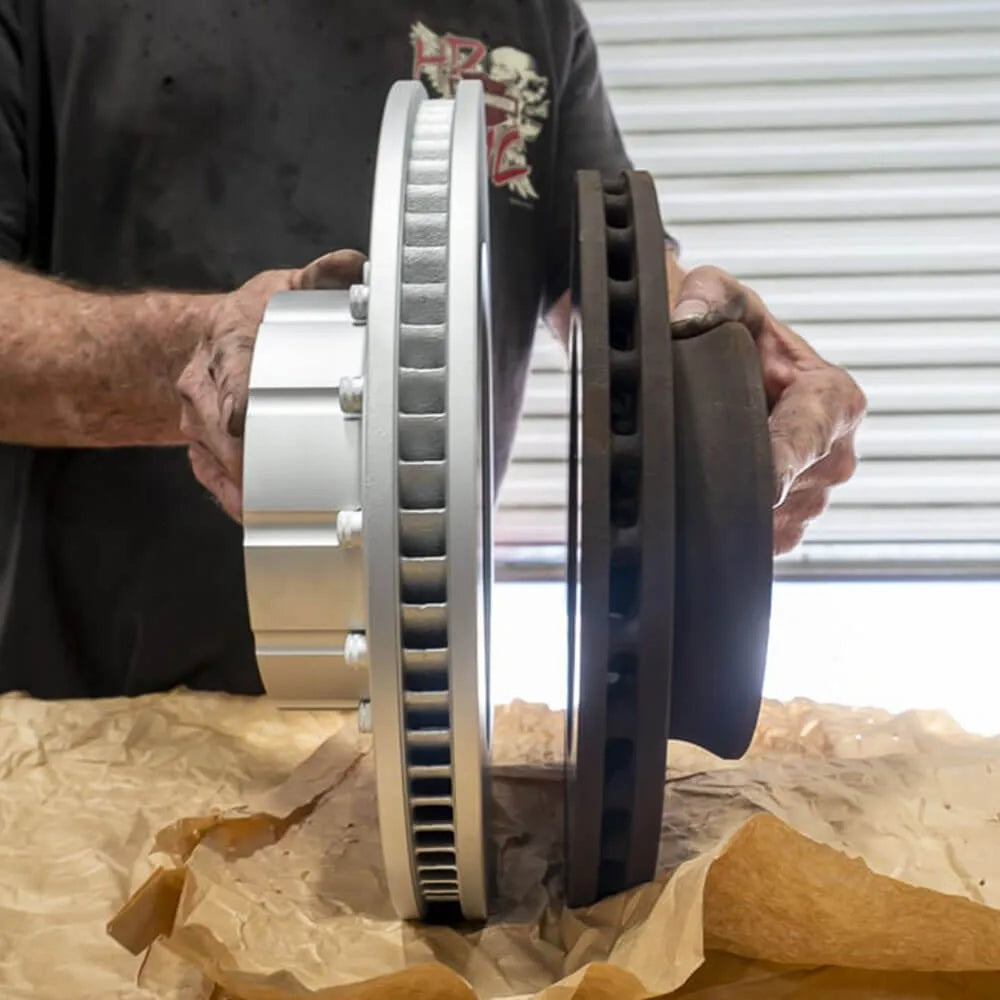

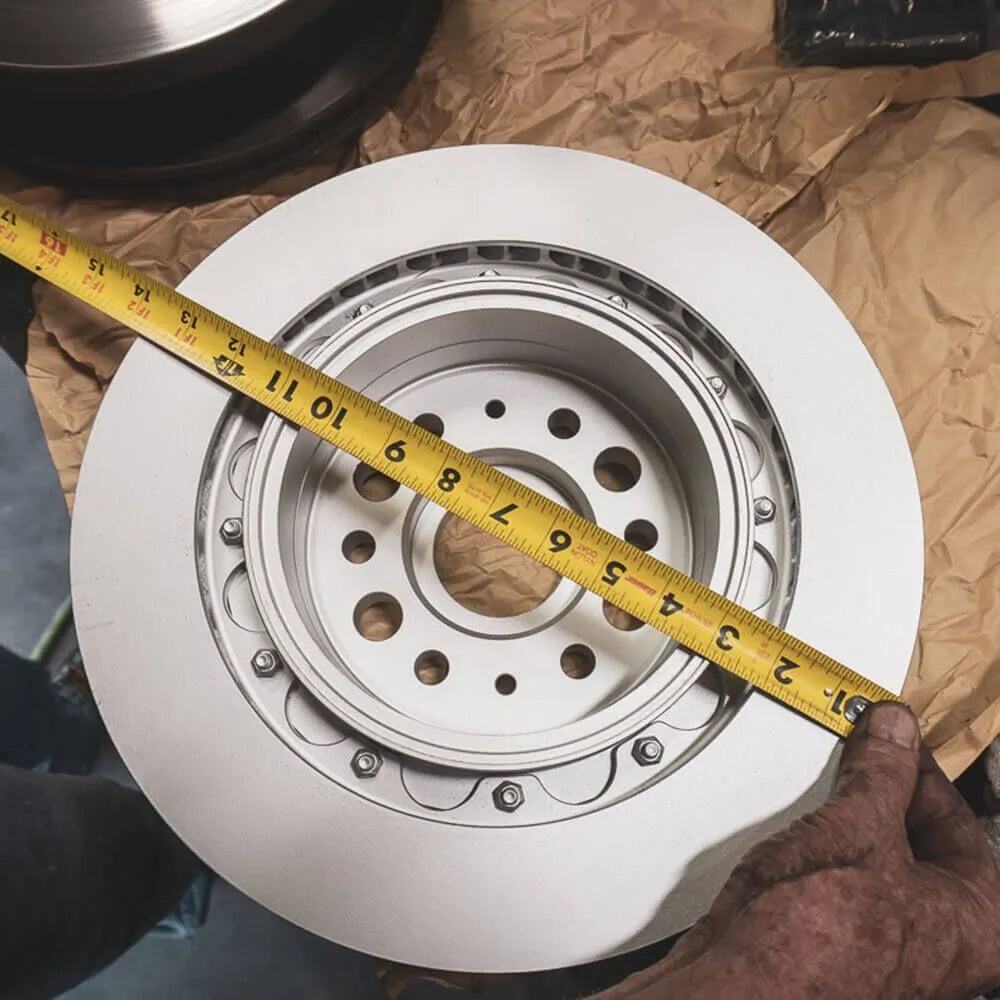

- Large 1-piece non-directional rotors (Alcon 13.5″ front & 14″ rear vs. factory 12″ front & 11.75″ rear) reduce disc temperatures, pad work rates, increase brake torque & reduce pedal effort
- Increased pad area reduces temperatures and increases pad life.
- Fits 17-inch and larger wheels
- Engineered to work with factory Mercedes master cylinder & ABS system
- Integrated offset correction for the RIP Kit. No wheel spacers required
Gains in performance over stock braking system:
- Up to 3% reduction in disc temperature rise
- Up to 45% reduction in pad work rate
- Up to 6% increase in available brake torque
- Up to 6% reduction in pedal effort
We are often working with vehicles so heavy that despite being relatively slow, they still need up to 30 times the brake torque used by racing cars, requiring calipers made from cast iron rather than aluminum. Even on a vehicle weighing dozens of tons it’s crucial our brakes play their part in not just slowing and stopping the vehicle but helping achieve the overall design objectives.
Kit Includes:

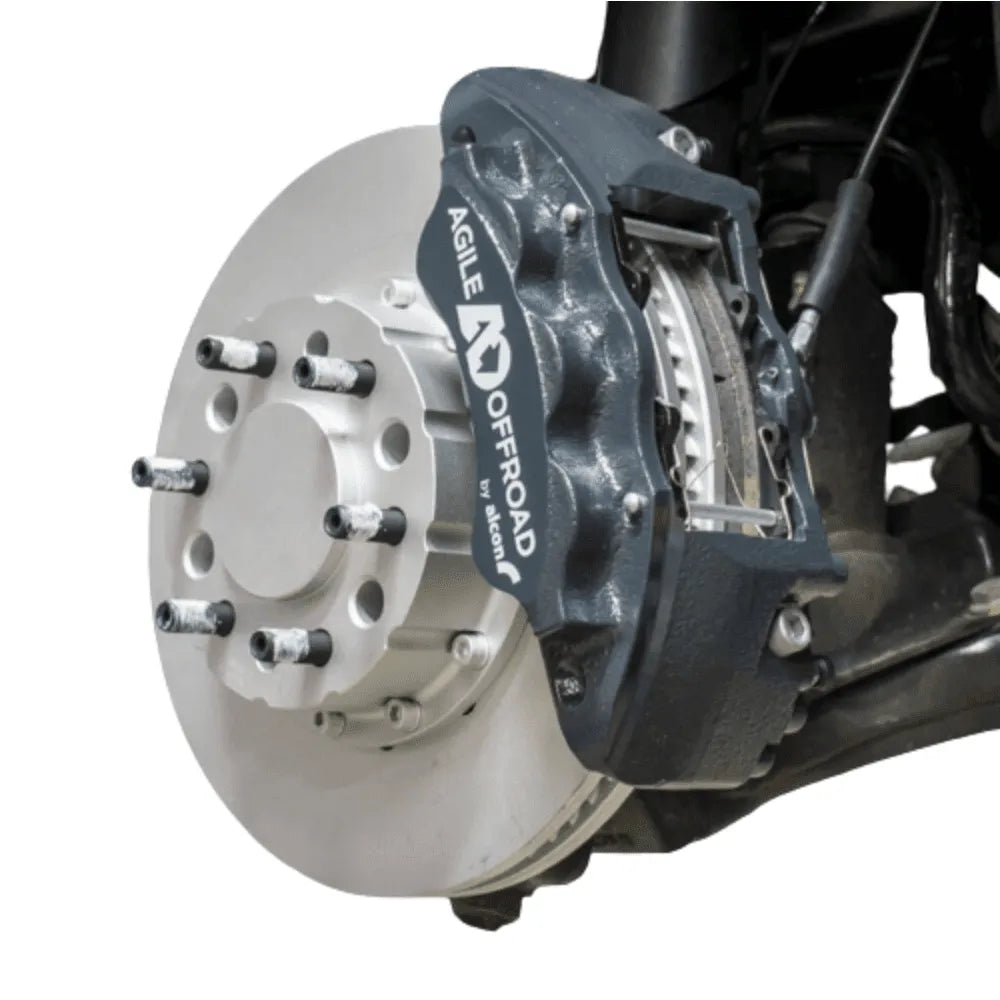

- (2) Alcon military-grade 6-piston front calipers
- (2) Alcon 13.5-inch two-piece heavy-duty front rotors
- (2) Alcon 4-piston rear calipers
- (2) Alcon 14-inch two-piece heavy-duty rear rotors
- (4) stainless steel brake lines
- (24) wheel studs
- (24) splined lug nuts w/ lug key
