Product Description
Application - Model Year 2014+:
2500/3500 Crew Cab Short Bed
2500/3500 Crew Cab Long Bed
2500 Mega Cab Short Bed
3500 Mega Cab Short Bed
2500/3500 Single Cab Long Bed
3500 Single Cab Chassis SRW 4x4 (60" and 84" C/A) *Call for availability
3500 Double Cab Chassis SRW 4x4 (60" and 84" C/A) *Call for availability
Recommended Tire Size:
37x12.50R17 on a 17x8.5 wheel w/ 6” backspacing
40x13.50R17 when used with AEV’s 17x10 Katla Wheel, HighMark Fender Flares and Front Bumper
Kit Contents:

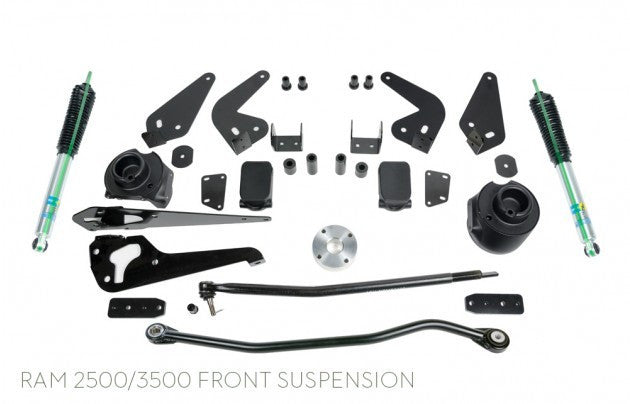

• Cast Aluminum Front Coil Spring Pad Relocation Mounts
• Forged Hi Steer Drag Link
• Custom AEV Tuned Bilstein 5100’s
• Heavy Duty Front Track Bar
• Front Track Bar Brackets
• Front Steel Bump Stop Spacers
• Front Axle Relocation Kit
• Aluminum Front Drive Shaft Spacer
• Hardware Pack
• AEV ProCal Module (Speedometer Recalibration)

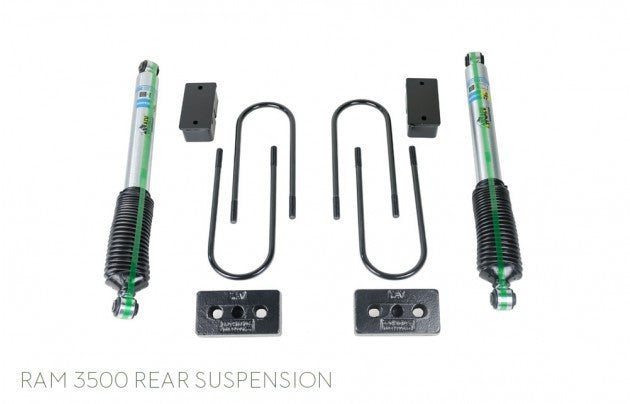

• Cast Aluminum Rear Coil Spring Spacers (Ram 2500)
• Rear Track Bar Relocation Bracket (Ram 2500)
• Rear Sway Bar End Links (Ram 2500)
• Rear Lift Blocks (Ram 3500)
• Rear U-Bolts (Ram 3500)
• Rear Bump Stop Spacers
• Radius Arm Relocation Kit
• Power Hop Bracket (If applicable)
• Rear Carrier Bearing Shim Kit (Two Piece Rear Drive Shafts only)
• Emergency Brake Cable Extension
Please Note: Installation of this suspension system on a 2014+ Ram Power Wagon truck will require the purchase of new front and rear coil springs, Mopar PN: 68172091AA (front) and 68091216AA (rear).
Base Kit for Ram Suspension 2014+ Model Year
*Call for additional options for this Ram Suspension Kit.
**AEV Power Hop Bracket must be added to the order when using on Gas and Manual Diesel Ram HD trucks.
***Truck Freight Shipping, we will contact you with a shipping quote before processing payment.
