MOAB Elevator Bed - Sprinter - Black Hex Top

Product Description

Welcome to MOAB - the Mother Of All Beds. Our patent-pending system will reinvent how you look at your sleep and cargo options inside your van. The MOAB platform provides one of the lightest and strongest van bed systems out there. The MOAB bed provides the flexibility of different height and width mounting options inside your van with three individual telescoping panels. For safety, these panels lock into place to keep them secured under load and movement. *** The locks MUST be engaged to insure safety!

All MOAB beds include 3 fully-assembled bed panels, 1 pair of mounting rails, and hardware to affix to Adventure Wagon's wall brackets, sold separately.

Accept no substitutes! No other Sprinter bed is built with this quality, functionality, or safety.

Bed Top Material

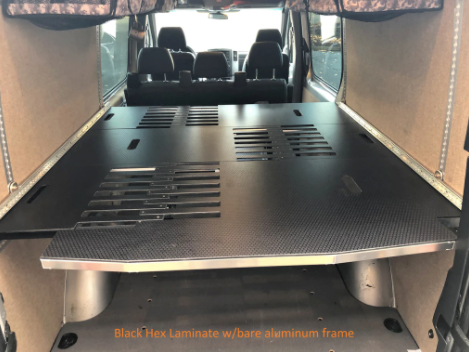

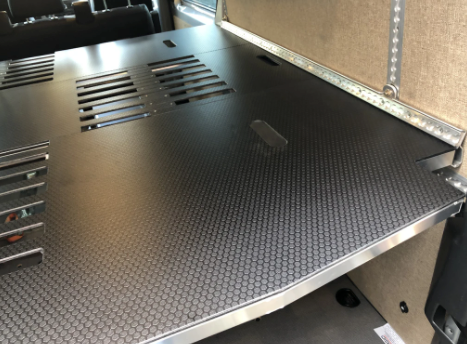

The Black Hex Laminate material is 3/8" thick plywood with a durable, attractive, composite laminate top and bottom. The top surface is a textured, hex pattern that provides grip for bedding and the underside is smooth.

• Bamboo bed top also available - Click Here

Frame Finish

• Bare, natural aluminum frame and mounting rails are standard

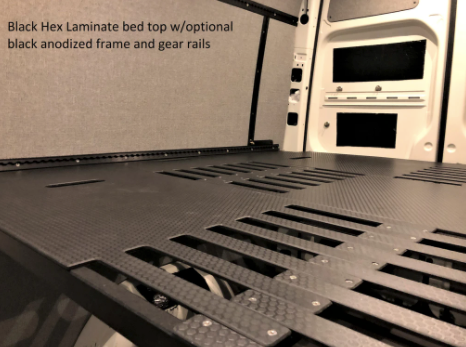

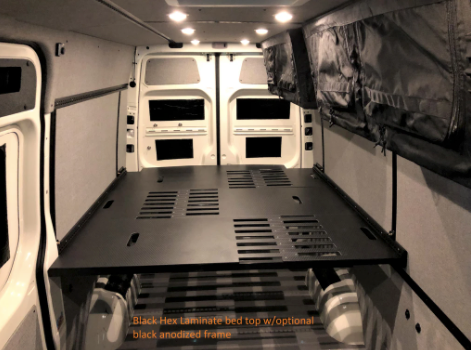

• Optional Black Anodized frame and rails - add $400

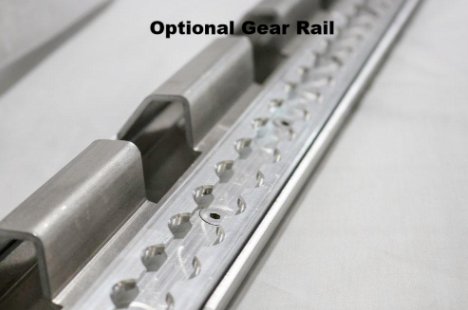

Gear Rail

The Gear Rail is an additional length of L-track that mounts to each bed rail and allows additional tie-down points to secure bedding and gear on top of the MOAB bed. Because it's attached to the bed rail and not the van wall, it will always be located at the edge of the bed platform regardless of the height you mount the bed. A picture is worth a thousand words - see the gallery for photos.

• Gear tie-down L-track, one for each bed rail - add $200

Installation & Install Kit Options

• The MOAB bed requires additional Adventure Wagon wall brackets and track.

• Each kit requires drilling into and securing steel wall bracers to the van interior wall. L-track bolts to the steel bracers, and the bed rails mount to the L-track.

• Installation Kit Options:
• If you have Adventure Wagon's Modular Interior System in your van then you already have the needed track and brackets installed. Select "None" for Install Kit.

• Bed Install Kit V2 - Adventure Wagon's best, most flexible, installation option that allows floor-to-ceiling height adjustment, Flarespace compatibility, and enables future upgrade to our complete Modular Interior System. Click here to see installation instructions.
• Bed Install Kit V1 - Best for installation in passenger or crew vans where you want to re-use your OEM interior panels. Also works in low-roof models. Click here to see installation instructions.
• Bed Mounting - Once the wall brackets and track are installed, the bed rails will mount to the L-track and the bed panels then easily click into place.

Compatibility

• 2007-current Mercedes-Benz Sprinter van model 144 & 170

• Sprinter high roof or low roof in either cargo, crew, and passenger versions

Features

• Configure the MOAB as an adjustable bed or shelving system

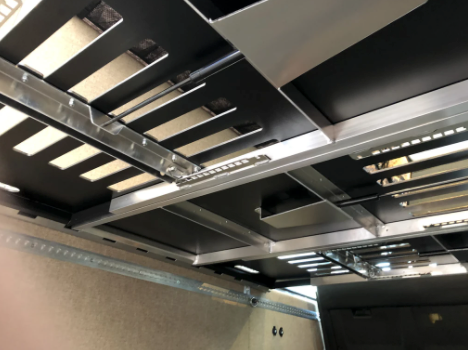

• Three lightweight telescoping panels constructed with a strong aluminum frame and plywood surfaces allowing you to raise or lower the bed quickly
• Each panel is expanded in place by a gas strut that exerts 15lbs of pressure onto the track system for a tight fit
• Remove the panels instantly to provide walk through space in your vehicle
• Total length is 77" long at the bed center, and 67" wide. Each of the smaller panels is 23" x 67" and the larger rear panel is 31" deep.

Benefits

• Strong, lightweight panels
• Install and remove panels in seconds
• Easily stowed to maximize cargo capacity.
• Simple to raise and lower bed position

Ordering

• Currently shipping within 20 business days.
• *Please note* due to supply chain challenges as a result of the global pandemic, shipping times are subject to change.

Shipping - Additional Freight Charges Required

• Beds will ship on a large pallet and must be shipped via truck freight due to size and weight. It is recommended that your order be shipped to a business with a loading dock and/or fork lift to minimize the shipping cost. If special delivery services such residential delivery or lift gate are needed, additional charges will be incurred. Orders can also be picked up at our facility with advanced scheduling.
